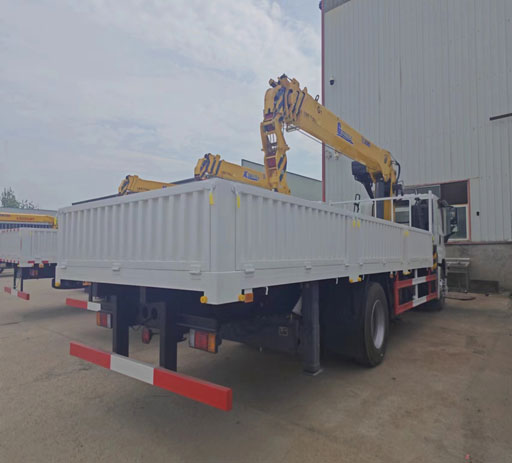

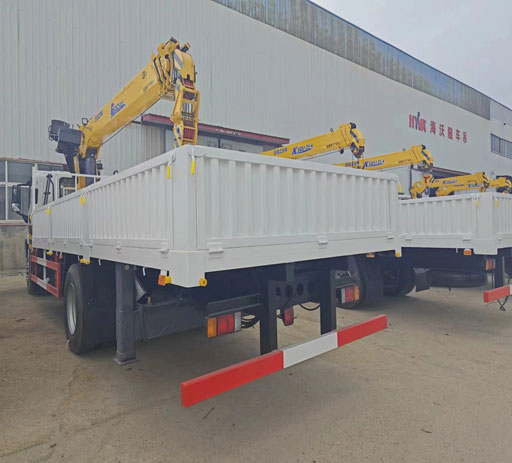

isuzu giga chassis, isuzu 205hp ,hydraulic xcmg straight boom,10ton lifting capacity, high strength carbon steel cargo box,which is widely used in multiple working conditions like port containerlifting,construction site ,road rescue,etc.
isuzu giga chassis, isuzu 205hp ,hydraulic xcmg straight boom,10ton lifting capacity, high strength carbon steel cargo box,which is widely used in multiple working conditions like port containerlifting,construction site ,road rescue,etc.
| Truck name | truck mounted crane |
| Chassis brand | isuzu giga |
| Emission standard | Euro6 |
| Steering type | Left hand drive |
| Wheel base | 4500mm/5550mm |
| Engine | isuzu |
| Horsepower | 205hp |
| Tire | 295/80R22.5 |
| Tire number | 6+1 |
| Front axle capacity | 6.3ton |
| Rear axle capacity | 13ton |
| Transmission | Manual |
| Gear box | MLD 6 gears |
| Fuel type | Diesel |
| Air condition | Cold and heat air conditioning |
| Super structure parameters | |
| Crane lifting type | Hydraulic |
| Crane capacity | 10ton |
| Boom model | 5-section |
| Lifting height | 16m |
| Working radius | 14m |
| container size | 6100*2000*4000mm(customized ) |
| container material | High strength carbon steel |
| Container thickness | 3mm Side,4mm bottom |
