with high pressure cleaning function,3cbm water tank,2.5 cbm dirty tank,with high pressure water cleaning function, dongfeng chassis, euro3/5/6 emission standard, left or right hand steering, max sweeping width 3.5m,working speed 5-20km/h,stainless steel material,with strong hydraulic system and CAN electric control system
with high pressure cleaning function,3cbm water tank,2.5cbm dirty tank,with high pressure water cleaning function,dongfeng chassis, euro3/5/6 emission standard, left or right hand steering, max sweeping width 3.5m,working speed 5-20km/h,stainless steel material,with strong hydraulic system and CAN electric control system
| Truck name | dongfeng road sweeper truck |
| Chassis parameters | |
| chassis brand | dongfeng |
| Emission standard | Euro 3/5/6 |
| Driving type | 4*2 left hand or right hand steering |
| Tire specification | 7.00R16 6 wheels +1 spare tire |
| Wheel base | 3300 mm |
| Engine | yuchai |
| Front axle capacity | 2.4ton |
| Rear axle capacity | 4.8ton |
| Transmission gearbox | 5 gears |
| Air condition | Heat and cold air conditioning |
| Super structure parameters | |
| Container volume | 2m³ water container+3.5 m³ garbage container |
| Container material | High strength carbon steel(water container) |
| Stainless steel (garbage container) | |

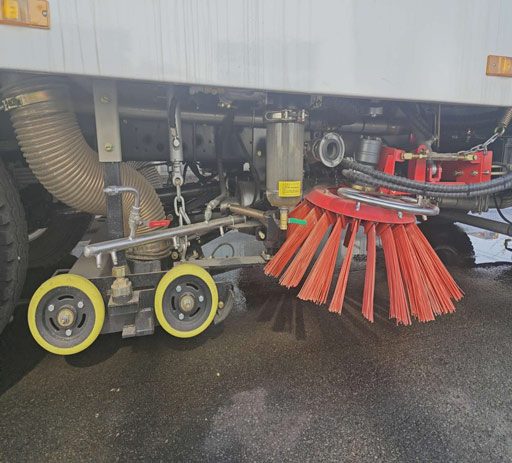

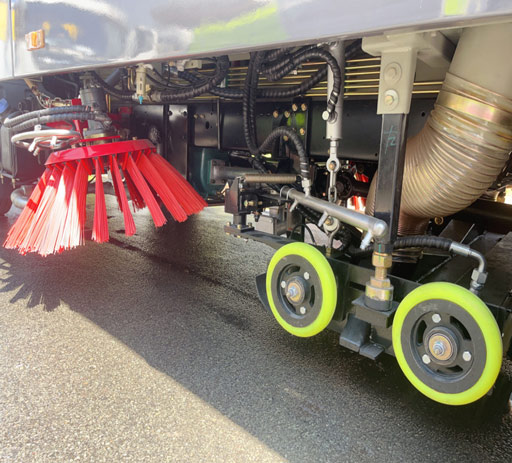

| Sweep Brush | 2 units |

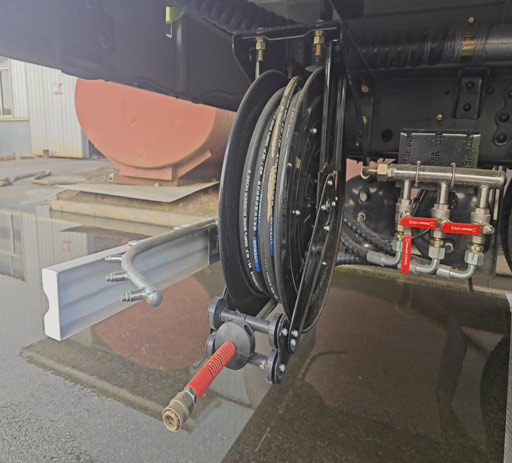

| key equipment | high pressure water cleaning unit |

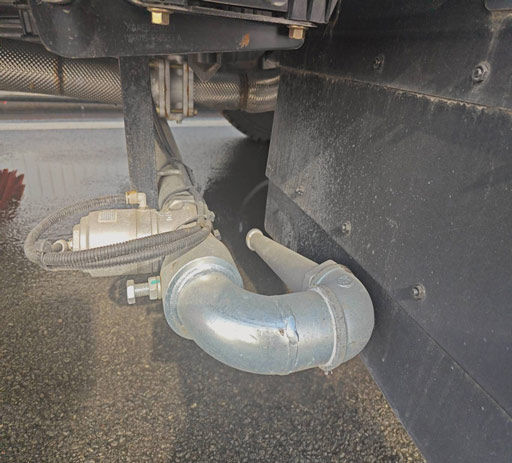

| Sucker | Bottom -installed |
| max sweeping width/h | 3.5m |
| working speed | 5-20 km/h |
