FAW chassis , euro2 /euro6 emission , 20m³ tank volume, left hand or right hand steering, compressed rate 0.8,only euro6 with left hand ready to ship
The compressed garbage truck produced by our company has the advantages of simple appearance, nice-design , excellent performance and advanced control system. It is the most popular garbage compression transport product. Jacket part by seal compression enclosure, filling machine, shovel, hydraulic transmission system and electrical control system, using hydraulic transmission, electrical control and bi-directional compression technology, through the automatic control system, realizes the garbage dump, strong extrusion, two-way pressure loading, high pressure, good sealing, easy to operate, safe and stable, It is mainly suitable for municipal sanitation, enterprises, factories, construction sites, residential property, institutions, colleges and universities and other local household garbage collection and transport.

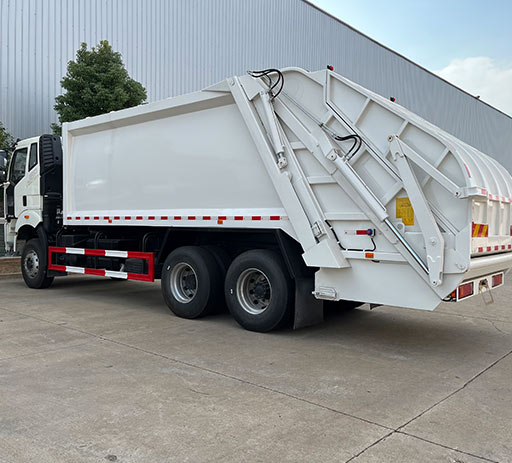

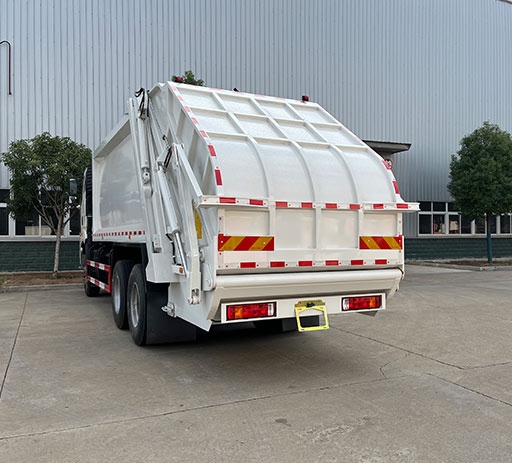

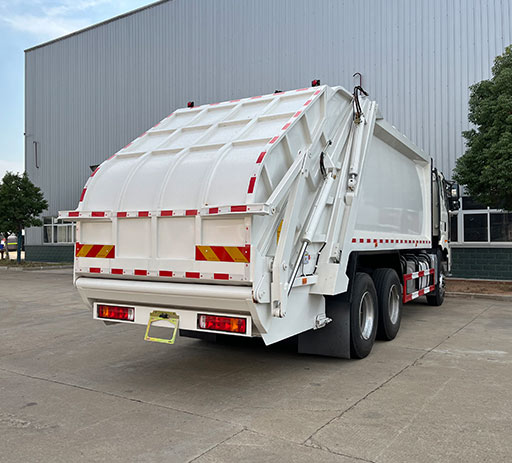

| Truck name | FAW 20 m³compactor garbage truck |
| Chassis parameters | |
| Chassis brand | FAW |
| Emission standard | Euro 2/6 |
| Driving type | 6*4 Left /right hand |
| Tire specification | 12.00R20 10wheels+1 spare tire |
| Wheel base | 4375+1400mm |
| Engine | Weichai |
| Transmission gearbox | manual |
| Oil tank | 300L |
| Air condition | Heat and cold air conditioning |
| Super structure parameters | |
| Container volume | 20 m³ |
| Container material | High strength carbon steel |
| Operation assy | Two sides simultaneous operation |
| Remote control | optional |
| Trash bin model | 120L/240L/660L/1100l |
| Compaction ratio | 0.8 |

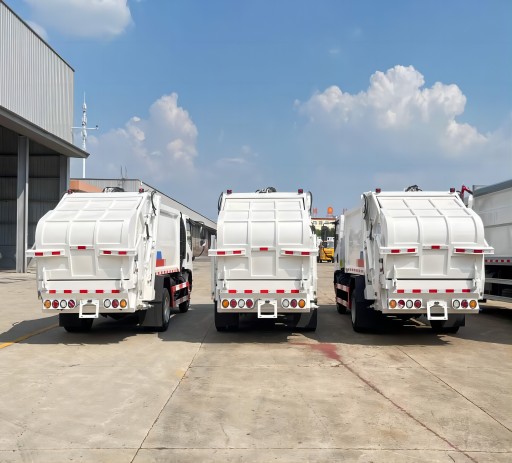

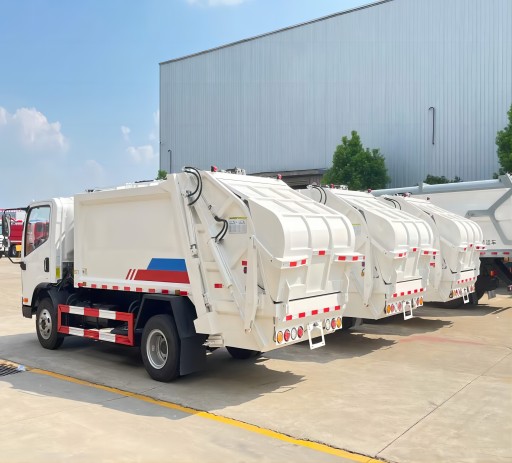

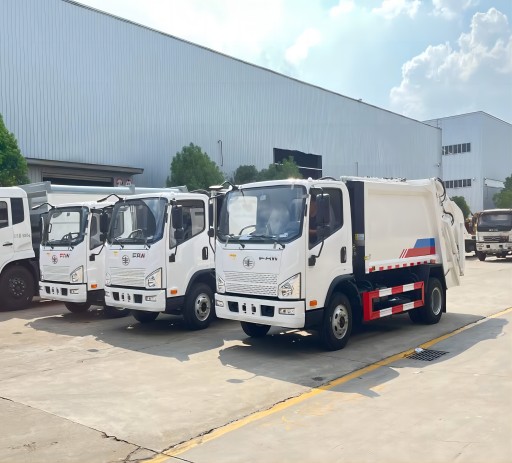

other FAW compactor garbage trucks , from 5cbm--25cbm
