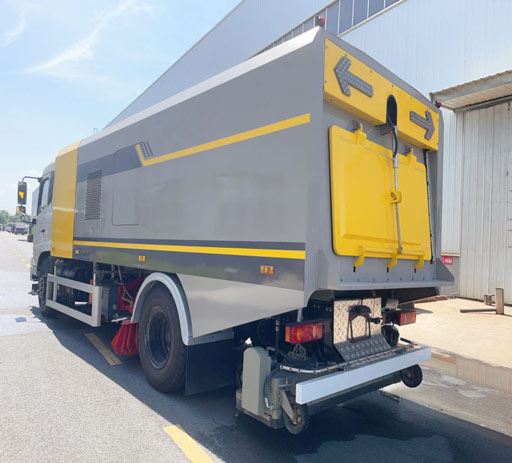

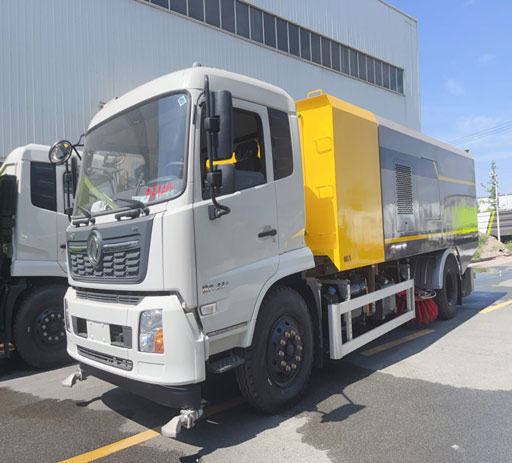

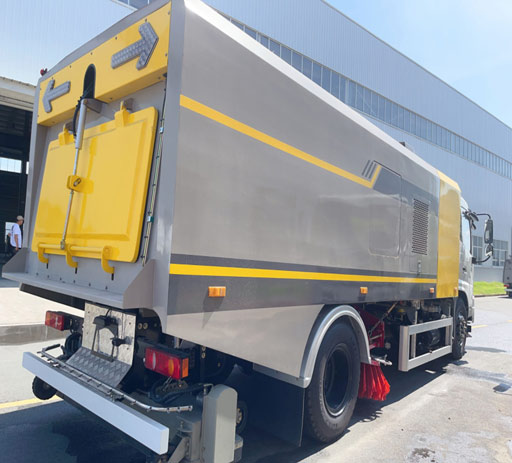

high pressure dongfeng 16cbm road sweeper and cleaning truck

with high pressure cleaning function, 9cbm water tank, 7cbm dirty tank,dongfeng chassis, euro3/5/6 emission standard, left or right hand steering, max sweeping width 4.2m,working speed 5-20km/h,stainless steel material,with strong hydraulic system and CAN electric control system

Description

with high pressure cleaning function,9cbm water tank, 7cbm dirty tank,dongfeng chassis, euro3/5/6 emission standard, left or right hand steering, max sweeping width 4.2m,working speed 5-20km/h,stainless steel material,with strong hydraulic system and CAN electric control system

Technical Data

Truck name  dongfeng road sweeper and cleaning truck
Chassis parameters
chassis brand dongfeng
Emission standard Euro 3/5/6
Driving type 4*2 left hand or right hand steering
Tire specification 10.00R20 6 wheels +1 spare tire
Wheel base 4500 mm
Engine cummins
Front axle capacity 7ton
Rear axle capacity 10ton
Transmission gearbox 8 gears
Air condition Heat and cold air conditioning
Super structure parameters

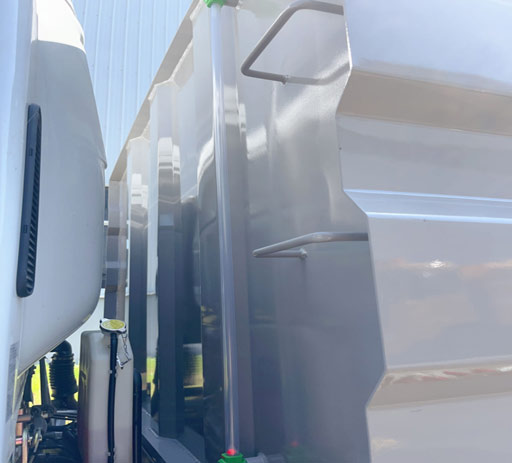

Container volume 9m³ water container+7 m³ garbage container
Container material High strength carbon steel(water container)
Stainless steel (garbage container)

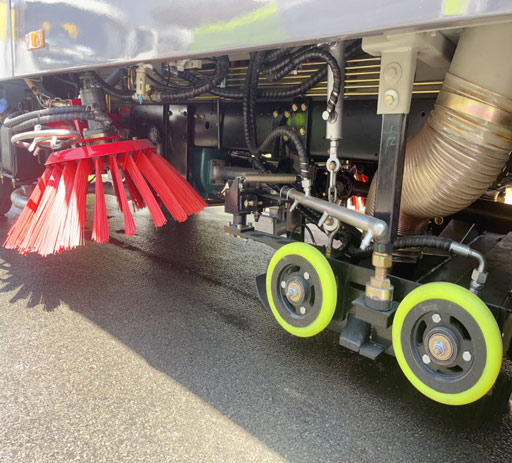

Sweep Brush 2 units
cleaning unit high pressure cleaning

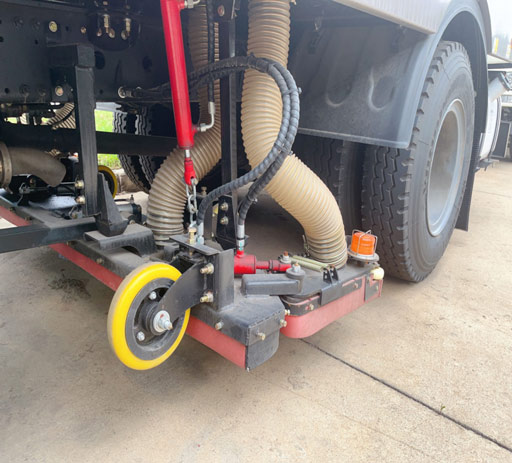

Sucker Bottom -installed
max sweeping width/h 4.2m
working speed 5-20 km/h
