dongfeng chassis, yuchai 120hp, diesel engine, 3.5cbm bitumen tank capacity, heat preservation layer, international famous brand burner, bitumen pump and other hydraulic units, used for asphalt/bitumen distribute in road construction site

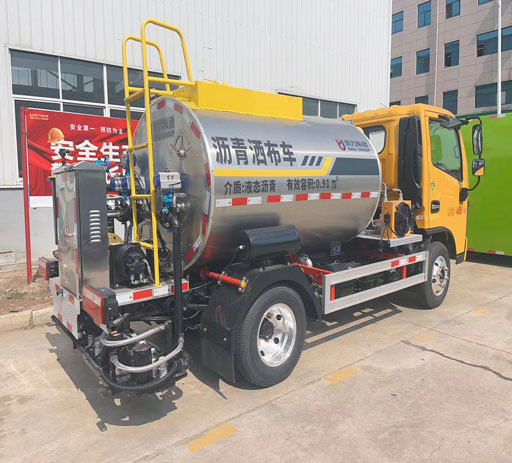

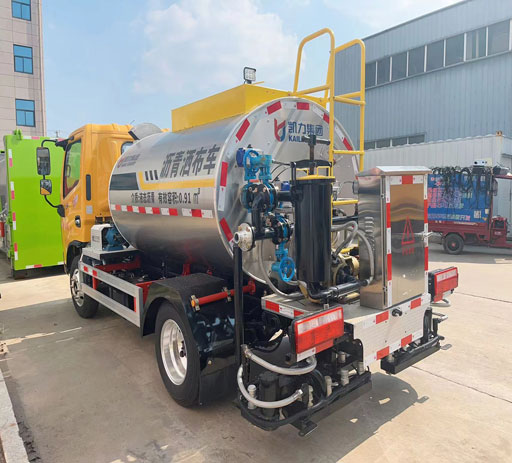

dongfeng 3.5cbm bitumen distributor truck
| Truck name | dongfeng 3.5cbm bitumen truck |
| Chassis parameters | |
| Chassis brand | dongfeng |
| Emission standard | Euro 2/5/6 |
| Driving type | 4*2 |
| Steering type | Left /right hand |
| Tire specification | 7.00R20 |
| Tire number | 6 wheels+1 spare tire |
| Wheel base | 3300mm |
| Engine | yuchai |
| Horsepower | 120hp |
| front/rear axle capacity | 2.4/4.8ton |
| Transmission gearbox | 5-speed manual gear |
| Oil tank volume | 125L |
| Suspension | Leaf spring |
| Air condition | Heat and cold air conditioning |
| Super structure parameters | |
| Container volume | 3.5m³ bitumen tank |
| Container material | stainless steel |
| Hydraulic assy | Domestic famous brand |
| Operation assy | Two sides simultaneous operation |
| Remote control | optional |
| spreading width | ≤4200mm |
| Asphalt spreading amount | 0.3-4.0L/m³ |
| heating system | burner |
| maxmum pressure | 20MPa |
