with highly performance vacuum dust suction function, 3cbm water tank, 7cbm dirty tank,dongfeng chassis, euro3/5/6 emission standard, left or right hand steering, max sweeping width 4.2m,working speed 5-20km/h,stainless steel material,with strong hydraulic system and CAN electric control system
with highly vacuum dust suction function,3cbm water tank, 7cbm dirty tank,dongfeng chassis, euro3/5/6 emission standard, left or right hand steering, max sweeping width 4.2m,working speed 5-20km/h,stainless steel material,with strong hydraulic system and CAN electric control system
| Truck name | dongfeng 10cbm vacuum sweeper truck |
| Chassis parameters | |
| chassis brand | dongfeng |
| Emission standard | Euro 3/5/6 |
| Driving type | 4*2 left hand or right hand steering |
| Tire specification | 10.00R20 6 wheels +1 spare tire |
| Wheel base | 4500 mm |
| Engine | cummins |
| Front axle capacity | 7ton |
| Rear axle capacity | 10ton |
| Transmission gearbox | 8 gears |
| Air condition | Heat and cold air conditioning |
| Super structure parameters | |
| Container volume | 3m³ water container+7 m³ garbage container |
| Container material | High strength carbon steel(water container) |
| Stainless steel (garbage container) | |

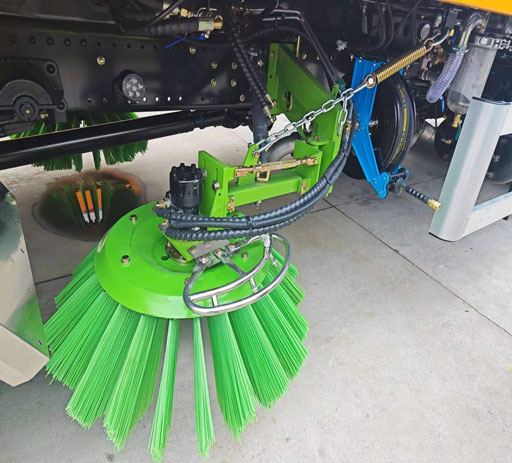

| Sweep Brush | 2 units |
| vacuum unit | vacuum dust collection |
| Sucker | Bottom -installed |
| max sweeping width/h | 4.2m |
| working speed | 5-20 km/h |
