Main Structure Schematic Diagram of Heavy – duty Towing and Lifting Integrated / Rotary Boom Type Wrecker
Only the classification of medium – and heavy – duty wreckers according to the conventional configurations of the upper body is introduced here. Based on the functions of the upper – body configurations of wreckers, their structures can be divided into two major categories: the integrated towing and lifting type and the rotary boom type.

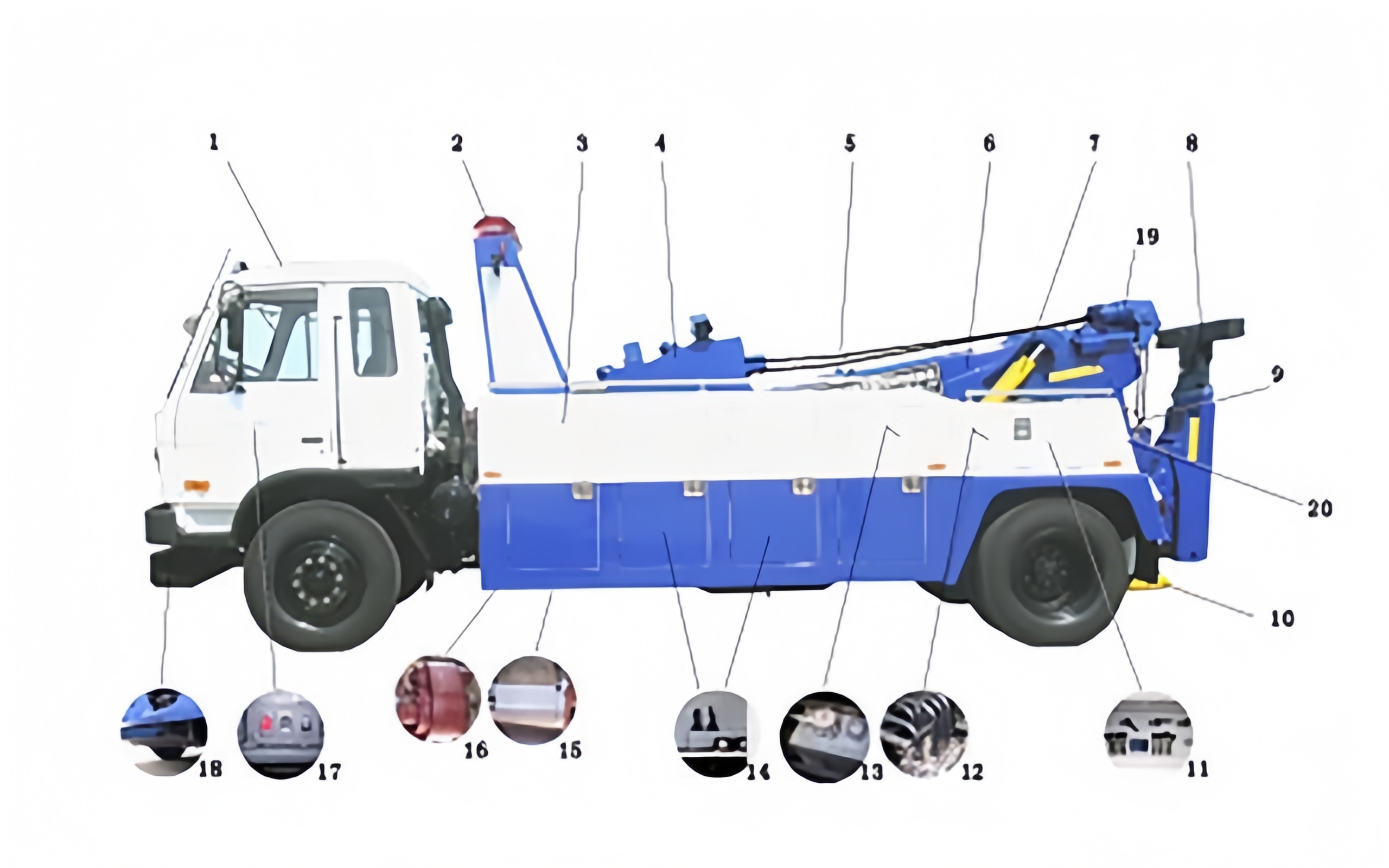

1.Cab2.Warning lights,light brackets, clearance lights (including indoor alarm control device)3.Vehicle body4.Winch5.Steel cable6.Boom7.Hydraulic cylinder
8.Lifting and supporting device9.Hook10.Outriggers11.Operation panel12.Multi – way valve and hydraulic system13.Fuel tank14.Toolbox and accessories15.Oil pump16.Power take – off (PTO)17.PTO operation switch18.Counterweight block19.Cable – guiding device 20.Pneumatic – electrical interface
(2)、Rotary Crane Type:

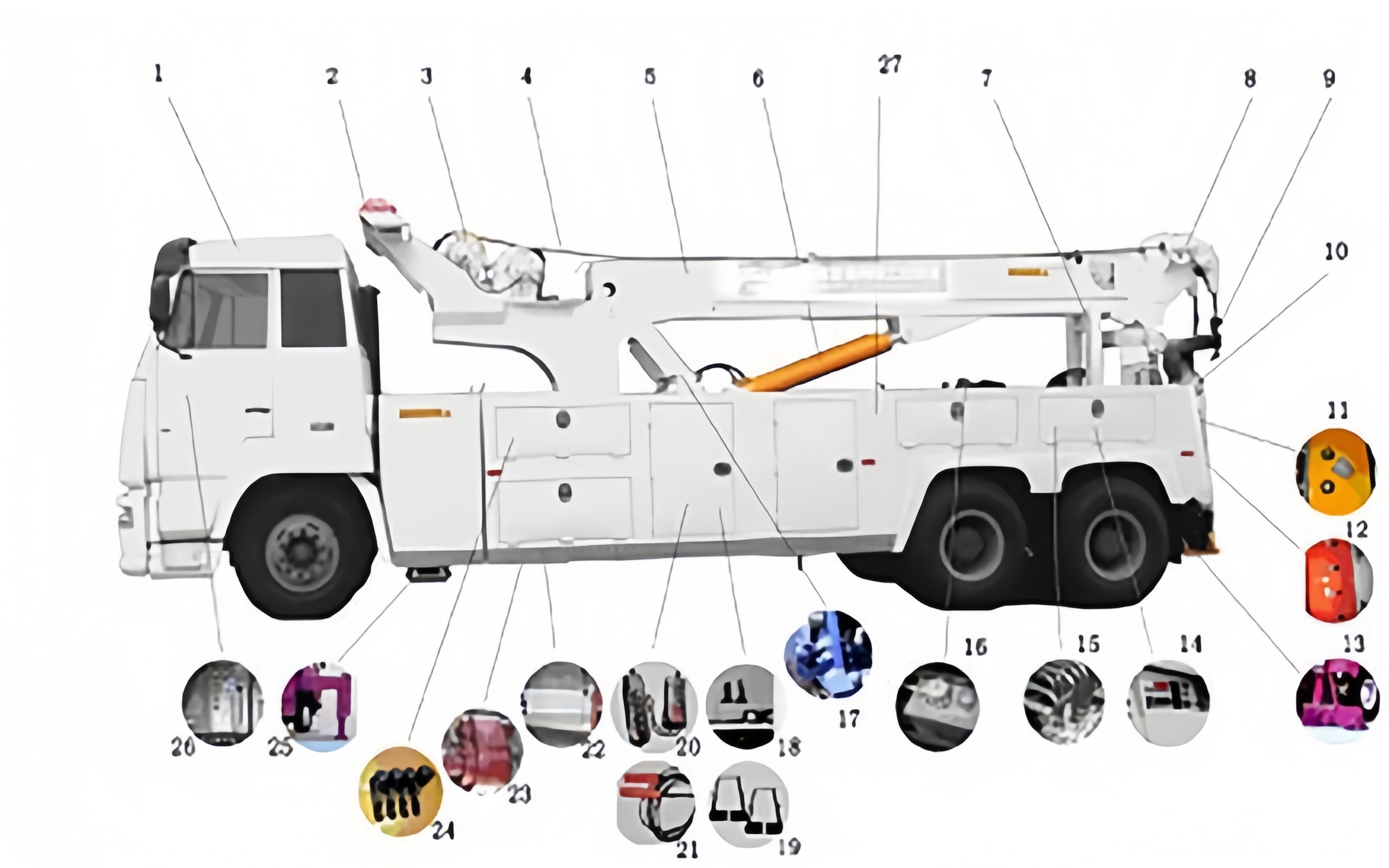

1.Cab; 2.Warning lights and their mounts, 2.clearance lights (including the indoor alarm control device); 3.Winch – equipped vehicle body; 4.Steel cable; 5.Boom; 6.Hydraulic cylinder; 7.Boom bracket; 8.Rope – guiding device; 9.Hook; 10.Lifting and supporting device; 11.Pneumatic – electrical interface; 12.Rear operation panel; 13.Rear outriggers;14. Main operation panel; 15.Multichannel valve and hydraulic system; 16.Fuel tank; 17.Boom slewing device; 18.19.Accessories like tow forks and brackets;20.21. Wireless and wired remote controllers; 22.Oil pump; 23.Power take – off (PTO);24. Front outrigger operation panel; 25.Front outriggers; 26.PTO operation switch; 27.Vehicle body and toolbox
Notes:
① For heavy – duty wreckers, the front outriggers can be classified into H – type horizontal – extending, A – type horizontal – rotating, and A – type outward – spreading types.
② The types, structures, configurations of various special devices and accessories of the wreckers described above may differ from what users require. The actual situation shall prevail.
