JAC Medical Waste Transfer Vehicle: Precise Protection, ‘Escorting’ for Medical Safety

1. Vehicle Model & Dimensions

Overall Vehicle Model: HFC5045XYYP32K5C7ZS

Overall Dimensions: 5995×1995×2800 (mm)

Cargo Box Dimensions: 4030×1870×1750 (mm)

2. Power & Chassis

Power/HP: 96KW/130HP, with Weichai engine (WP2.3NQ130E61, 2289ml displacement)

Chassis: Junling V5 medium cab, 5 – speed gearbox, 7.00 steel – wire tires, AC, power steering, oil brakes, central locking, electric windows. It’s a hazardous goods transporter for infectious substances, equipped with ABS and heated rear – view mirrors.

3. Body

Insulation: Meets national Class A standard. Advanced wooden process with top – grade non – toxic materials, high – performance rigid polyurethane. One – piece – formed plates by special mold. High – molecular composite body, well – sealed, resists bulging and leakage.

Structure: Box plates of Q195 galvanized pipes and eco – friendly boards, covered with 2.0 – thick Yinuo fiberglass. Outer frame of Baosteel stainless steel. All metal parts are stainless, durable. Bottom plate sub – beams from Wuhan Iron and Steel, strong.

4. Features

Sealed Design: Fully enclosed body, double – layer rear door (inner door with air spring) for isolation and easy loading/unloading.

Inner Wall & Protection: Inner stainless – steel wall resists disinfectants. Outer fiberglass, side stainless – steel protectors prevent box turnover. Rounded carriage bottom for easy cleaning.

Disinfection: UV sterilization lamp on roof (kills bacteria in 30 – 45 min) and disinfection spray for thorough cleaning.

Refrigeration: Refrigeration unit controls cargo – loading compartment temperature to inhibit bacteria growth.

Performance: Sealed, anti – seepage, dust – proof, antibacterial, flame – retardant, corrosion – resistant, easy – to – clean. Automatic spray for disinfection.

Sewage & Waste: Front – floor sewage hole with stainless – steel pipe. Heat – insulating waste liquid collector at pipe end, with ball valve for leak – free drainage.

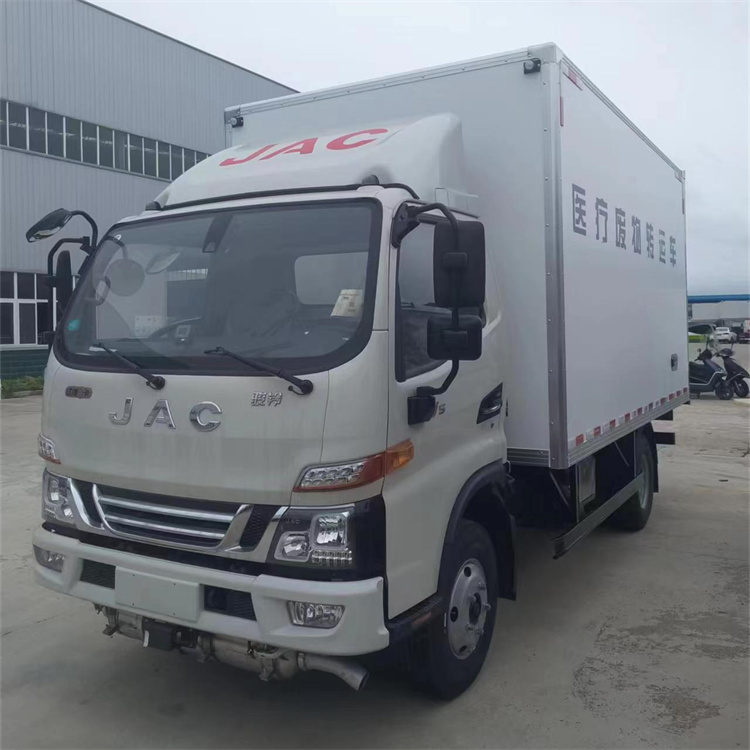

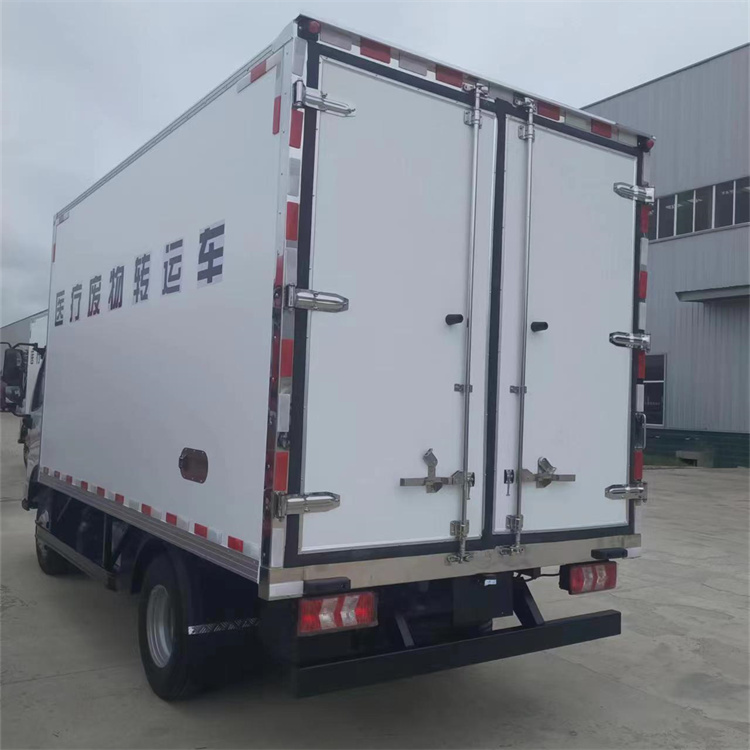

Markings: Medical waste warning signs on body, transfer unit name on cab sides.

Anti – Corrosion: Metal parts with phosphating treatment, sprayed with high – quality primer and topcoat, withstand harsh conditions.

Safety: Complete side and top lights for night visibility. Rear and side reflective markings for better recognition at night, reducing accident risk.
