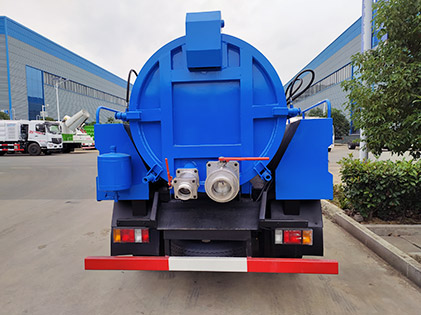

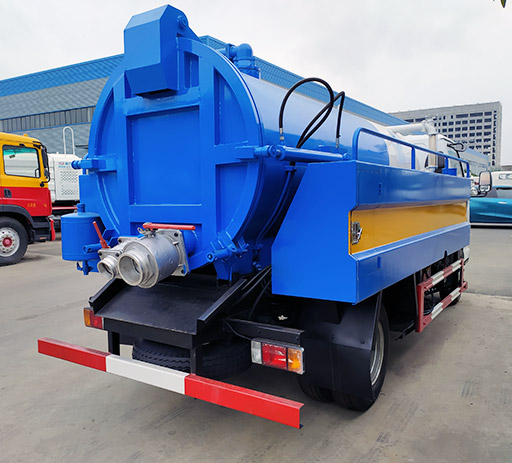

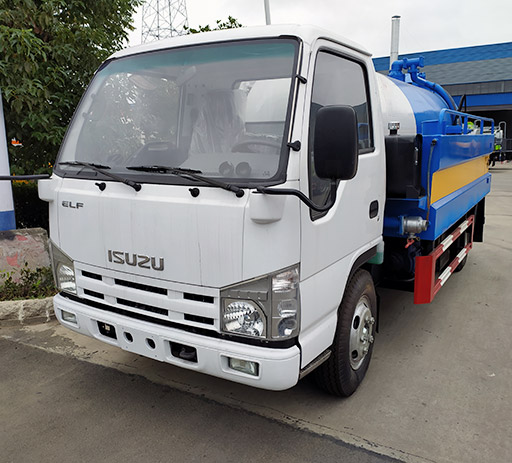

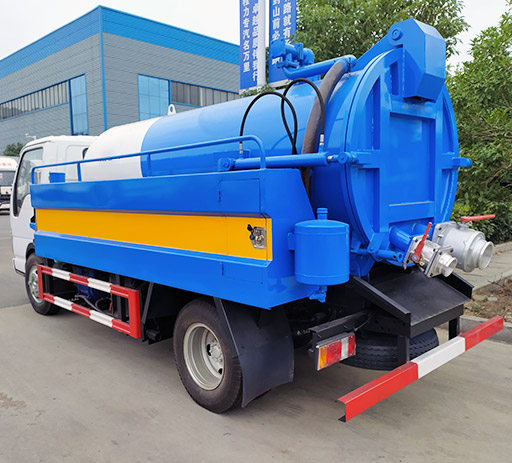

Isuzu 5 m³sewage suction truck

isuzu chassis, euro4/euro5/euro6 emission ,5cbm tank volume ,left hand or right hand steering , with strong vacuum pump,designed for city sewage suction and transportation

Description

Technical Data

Truck name isuzu 5 m³sewage suction truck
Chassis parameters
Chassis brand Isuzu
Emission standard Euro 4/5/6
Driving type 4*2 left hand or right hand steering
Tire specification 7.00R16 6wheels +1 spare tire
Wheel base 3360 mm
fuel type diesel engine
Horsepower 98hp
Front axle capacity 2.5ton
Rear axle capacity 4.8ton
Transmission gearbox 5 gears
Air condition Heat and cold air conditioning
Super structure parameters
Container volume 5 m³
Container material High strength carbon steel
Operation assy Two sides simultaneous operation
Remote control optional
Pump assy 5ton oil pump/6ton water pump
Tank thickness 4mm
