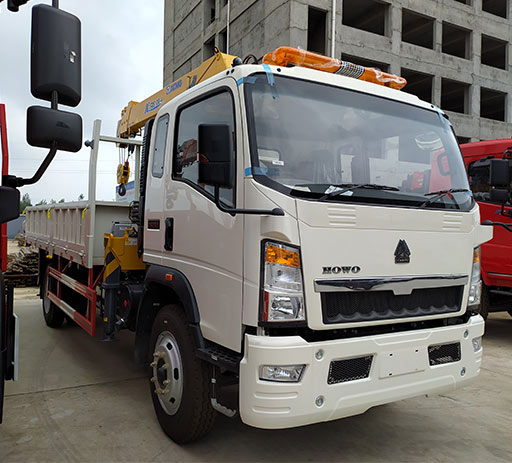

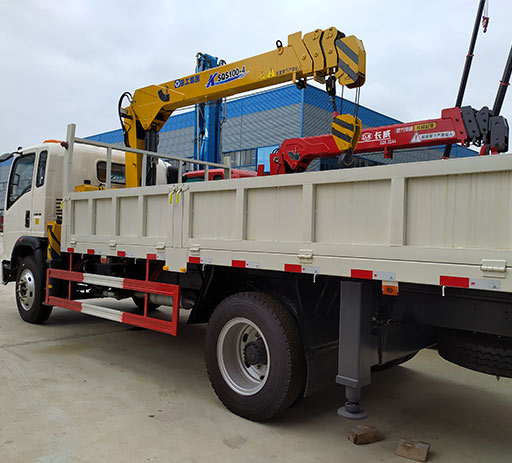

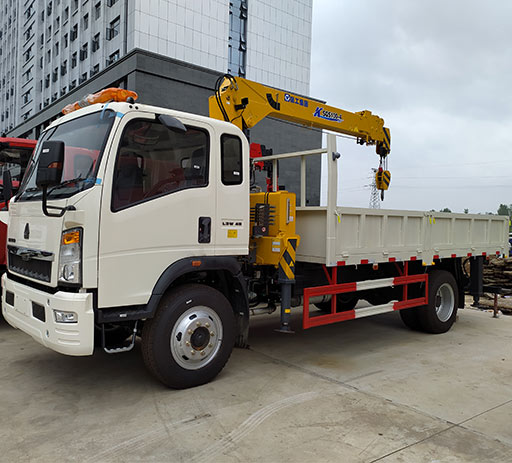

hydraulic xcmg straight boom, 4ton lifting capacity,with howo chassis, diesel engine, cargo box,which is widely used in multiple working conditions.
hydraulic xcmg straight boom, 4ton lifting capacity,with howo chassis, diesel engine, cargo box,hydraulic outrigger/stabilizer
| Truck name | truck mounted crane |
| Chassis brand | Howo |
| Emission standard | Euro3/4/5 |
| Steering type | Left hand drive |
| Wheel base | 3800mm |
| Engine | ISF3.8S3141 |
| Horsepower | 141hp |
| Tire | 8.25R16 |
| Tire number | 6+1 |
| Front axle capacity | 2.4ton |
| Rear axle capacity | 4.2ton |
| Transmission | Manual |
| Gear box | WLY651 |
| Fuel type | Diesel |
| Air condition | Cold and heat air conditioning |
| Super structure parameters | |
| Crane lifting type | Hydraulic |
| Crane capacity | 4ton |
| Boom model | 3-section |
| Lifting height | 10m |
| Working radius | 8.1m |
| container size | 4300*2300*550mm(customized ) |
| container material | High strength carbon steel |
| Container thickness | 3mm Side,4mm bottom |
