HOWO chassis,336hp diesel engine,6*4 driving ,20ton loading capacity,stainless steel/carbon steel tank material, water pump/stainless steel water pump, rear working platform ,used for street washing, water storage,etd

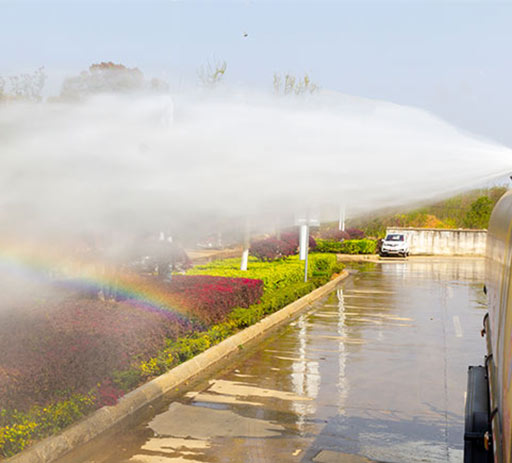

The sprinkler is loaded with a front rush, after sprinkling, side spray, rear type working platform, platform with high pressure water cannon (360° rotation, water mist shape can be adjusted into straight rush shape, heavy rain, moderate rain, light rain, drizzle)
Equipped with high quality high-power special sprinkling pump,famous brand force extractor, sundry filter, GB general 65 fire interface (water can be added through fire hydrant), a set of self-flow ball valve system, self-suction and self-discharge, installation of 2 water diversion steel wire hose.

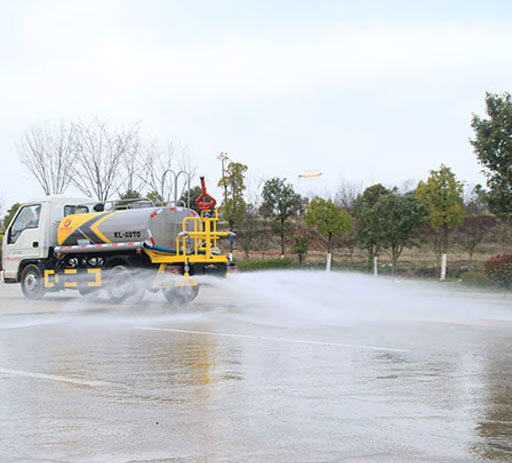

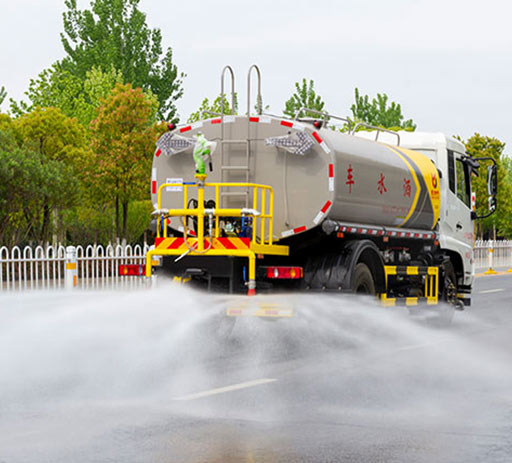

Suitable for all kinds of road cleaning; city virescence belt watering; construction site,and high - altitude building flushing. It has many functions such as water sprinkling, dust pressing, high (low) level spraying, pesticide spraying, guardrail washing and emergency fire fighting.

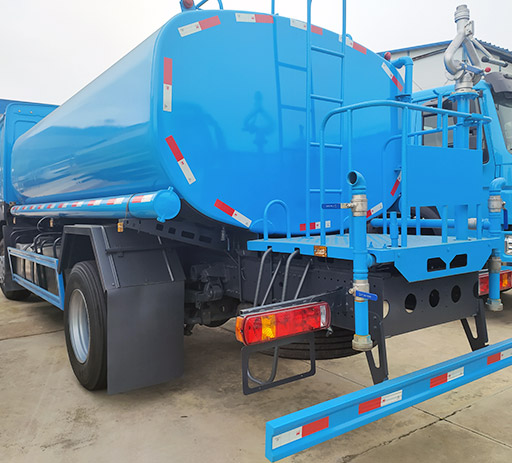

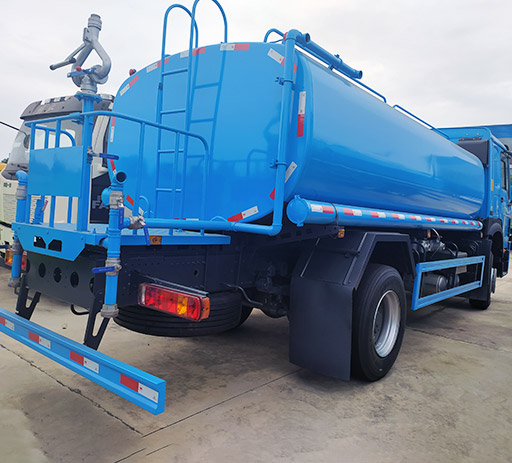

| Truck name | Howo 20000l water tank truck |
| Chassis parameters | |
| Chassis brand | howo |
| Emission standard | Euro 2/5/6 |
| Driving type | 6*4 |
| Steering type | Left /right hand |
| Cab model | One row |
| Tire specification | 12.00R20 |
| Tire number | 10 wheels+1 spare tire |
| Wheel base | 4325+1350mm |
| Engine | WEICHAI |
| Horsepower | 336HP |
| Front axle capacity | HF9 9TON |
| Rear axle capacity | HC16 16TON |
| Transmission gearbox | HW19710 |
| Oil tank volume | 300L |
| Suspension | Leaf spring |
| Air condition | Heat and cold air conditioning |
| Super structure parameters | |
| Container volume | 20 m³ |
| Container material | carbon steel/stainless steel |
| Hydraulic assy | Domestic famous brand |
| Operation assy | Two sides simultaneous operation |
| Remote control | optional |
| Tank thickness | 6mm |
| Spraying model | Front spraying, rear spraying,two sides spraying |
| Spraying capacity | Front spraying>18m |
| High pressure spraying>35m | |
