How to Select a Suitable Vacuum Pump for Sewage Suction Trucks

With the vigorous development of China’s foreign trade, numerous countries have imported a large number of special-purpose vehicles from China. Suizhou, known as the capital of special-purpose vehicles in China, has emerged prominently in the field of foreign trade of special-purpose vehicles in recent years. However, in recent years, due to various factors, many foreign customers have been quite troubled when facing after-sales problems after purchasing vehicles for many years. One prominent issue is that it is difficult to purchase the accessories for the superstructure of many special-purpose vehicles. Some salespersons are neither responsible for after-sales service nor equipped with professional knowledge, and thus unable to solve problems for customers.​

Our company mainly engages in the sales of special-purpose vehicles and attaches great importance to after-sales service. We are committed to solving the problems of superstructure spare parts for customers. Currently, we have effectively provided a large number of superstructure spare parts for many multinational customers. Next, we will introduce in detail the commonly used core accessory of sewage suction trucks – XD series sewage suction pumps, to help customers more conveniently find suitable products when replacing vulnerable parts.​

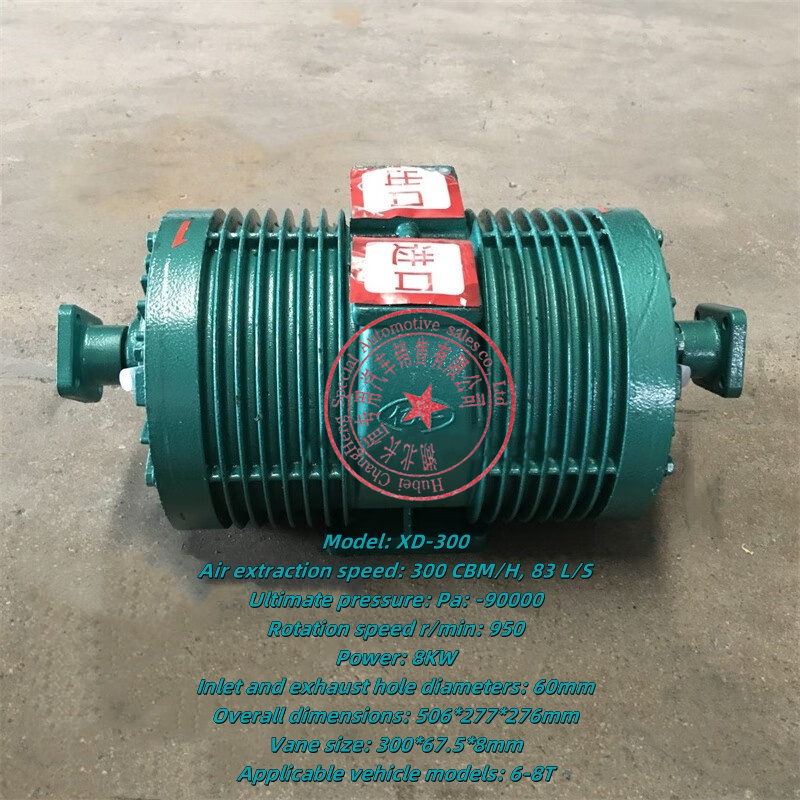

The XD series single-stage multi-vane vacuum pumps integrate advanced European and American technologies, use high-tech materials, and are manufactured with advanced processes. This series of vacuum pumps has remarkable features such as a compact structure, an attractive appearance, high vacuum degree, a wide range of applications, a long service life, and convenient maintenance. The following table presents the performance parameters of each model for your comparison and screening, so as to determine the vacuum pump suitable for your own sewage suction truck. We hope it can provide you with strong assistance.​

Description

XD-185 XD-240 XD-300 XD-360 XD-420
Flow rates 3120 liters/min, 185 m³/h 3960 liters/min,240m³/h 4980 liters/min,300m³/h 6000 liters/min,360m³/h  6960liters/min,420m³/h
Speed 950 rpm  950rpm  950rpm  950rpm  950rpm
Guaranteed vacuum -675mm Hg /'-90000Pa -675mm Hg /'-90000Pa -675mm Hg /'-90000Pa -675mm Hg /'-90000Pa -675mm Hg /'-90000Pa
Required motor 5KW 6.5KW 8KW 10KW 12KW
Inlet and exhaust hole diameters 50mm 50mm 50mm 60mm 60mm
Vane size 253*52.5*8mm  332*52.5*8mm 506*277*276mm 562*277*276mm 562*284*276mm
Over Dimensions 464*236*246mm 542*236*246mm  300*67.5*8mm 356*67.5*8mm 356*67.5*8mm
Weight 95kg 95kg 95kg 100kg 100kg
For sewage tank  1000-3000 liters 4000-5000 liters 6000-8000 liters  9000-10000 liters more than 10000 liters
