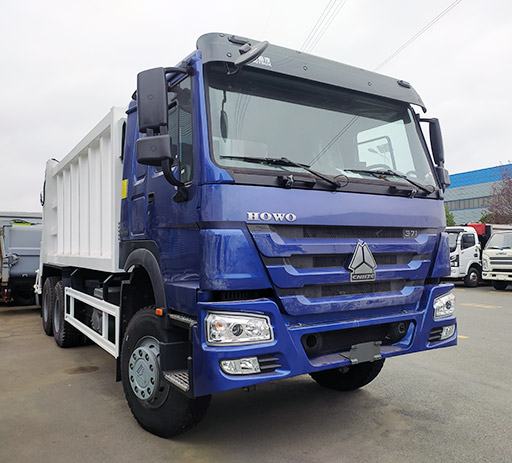

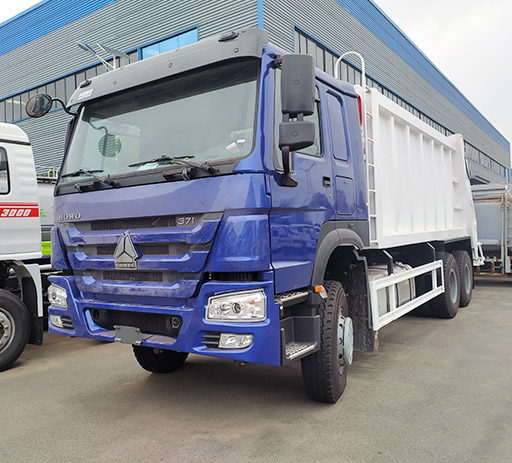

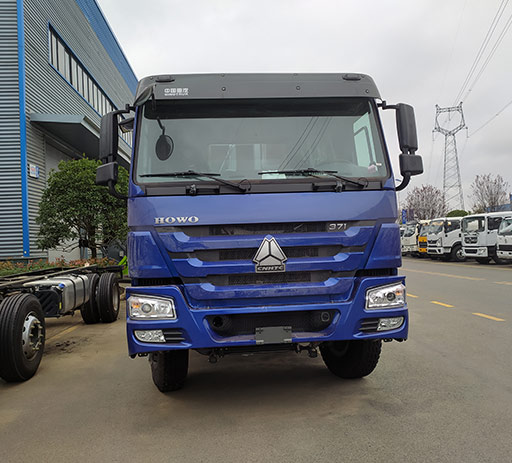

6*4 10 wheels Howo chassis, heavy duty 20cbm loading capacity, high strong weichai diesel engine, rear turn over unit, hydraulic system to compress the city household garbage
The compressed garbage truck produced by our company has the advantages of simple appearance, nice-design , excellent performance and advanced control system. It is the most popular garbage compression transport product. Jacket part by seal compression enclosure, filling machine, shovel, hydraulic transmission system and electrical control system, using hydraulic transmission, electrical control and bi-directional compression technology, through the automatic control system, realizes the garbage dump, strong extrusion, two-way pressure loading, high pressure, good sealing, easy to operate, safe and stable, It is mainly suitable for municipal sanitation, enterprises, factories, construction sites, residential property, institutions, colleges and universities and other local household garbage collection and transport.
| Truck name | HOWO 20 m³compactor garbage truck |
| Chassis parameters | |
| Chassis brand | Sinotruk howo |
| Emission standard | Euro 2/4 |
| Driving type | 6*4 left hand or right hand steering |
| Tire specification | 12.00R20 10+1 |
| Wheel base | 4625+1350mm |
| Engine | Weichai |
| Horsepower | 371hp |
| Front axle capacity | FH9 9ton |
| Rear axle capacity | HC16 16ton |
| Transmission gearbox | HW19710 |
| Oil tank | 300L |
| Air condition | Heat and cold air conditioning |
| Super structure parameters | |
| Container volume | 20 m³ |
| Container material | High strength carbon steel |
| Operation assy | Two sides simultaneous operation |
| Remote control | optional |
| Trash bin model | 120L/240L/660L/1100L |
| Compaction ratio | 0.8 |
