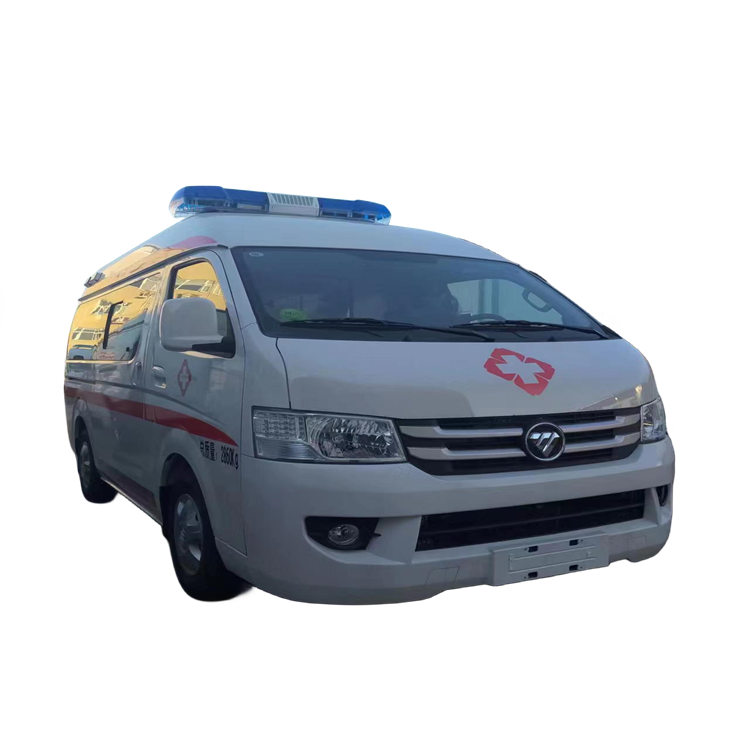

Foton View G7 Long-axis Negative Pressure Monitoring Ambulance

  1. Product Introduction

The Foton View G7 Long-axis Negative Pressure Monitoring Ambulance is refitted from the Foton View G7 long-axis model. It is equipped with a 2.4L gasoline 4K22 engine, which is perfectly matched with the vehicle, offering powerful performance and high fuel efficiency. It is equipped with a comprehensive active and passive safety protection system, with a maximum speed of 150 km/h. Using Bosch 9.1 version ABS+EBD technology, it features a guided front crash zone design, high-strength steel plates, and a high-strength anti-collision steel beam design to fully ensure the safety of the vehicle. The overall low center of gravity of the vehicle body makes it more stable, effectively ensuring the safety of the driver. The medical cabin has a reasonable space design. The whole vehicle adopts leading medical vehicle refitting technology, making it suitable for various hospitals and emergency centers, especially for patient transfer and urban emergency rescue.



  1. Vehicle Parameters and Standard Configuration

Refitting Base Vehicle (Chassis Vehicle): Foton View G7 Long-axis Gasoline National VI Manual Transmission.

Exterior Colors: White, Red.

Maximum Total Mass: 2860 kg.

Number of Occupants: 7 people (including the number of patients on the stretcher).

Wheelbase: 3050 mm.

Vehicle Dimensions: 5320mm×1695mm×2460mm.

Medical Cabin Dimensions: 3300mm×1540mm×1580mm.

Approach/Departure Angle: 15º/16.5º.

Maximum Speed: 150 km/h.

Engine Model: 4K22D4M.

Engine Displacement: 2.378L.

Emission Standard: National VI.

Rated Power: 118 KW.

Fuel Tank Capacity: 65L.

Drive Type: Mid-engine Rear-wheel Drive.

Minimum Ground Clearance: 170mm.

Transmission: 5 forward gears, 1 reverse gear.

Suspension Type: Double-wishbone Torsion Bar Spring Independent Suspension/Leaf Spring Non-independent Suspension.

Power Assist Type: Hydraulic Power Steering.

Braking Type: Front Disc Rear Drum, Hydraulic Braking.



III. Medical Warning Exterior

Body Structure: Adopts a steel-reinforced frame structure design, ensuring safety and reliability.

The right side of the vehicle body is equipped with a sliding door, and the rear end adopts an upward-opening tailgate structure with a large opening width, facilitating the entry and exit of medical staff and stretchers.

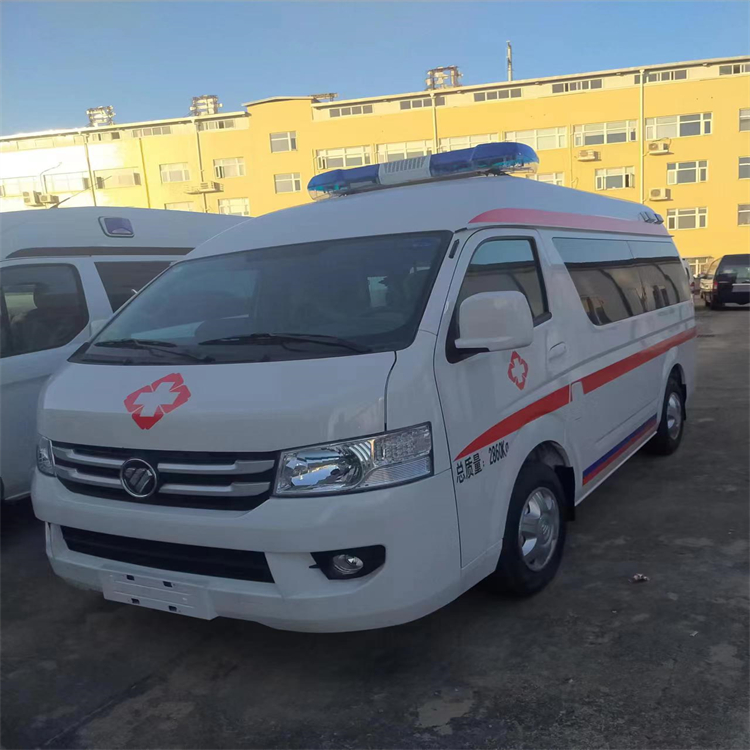

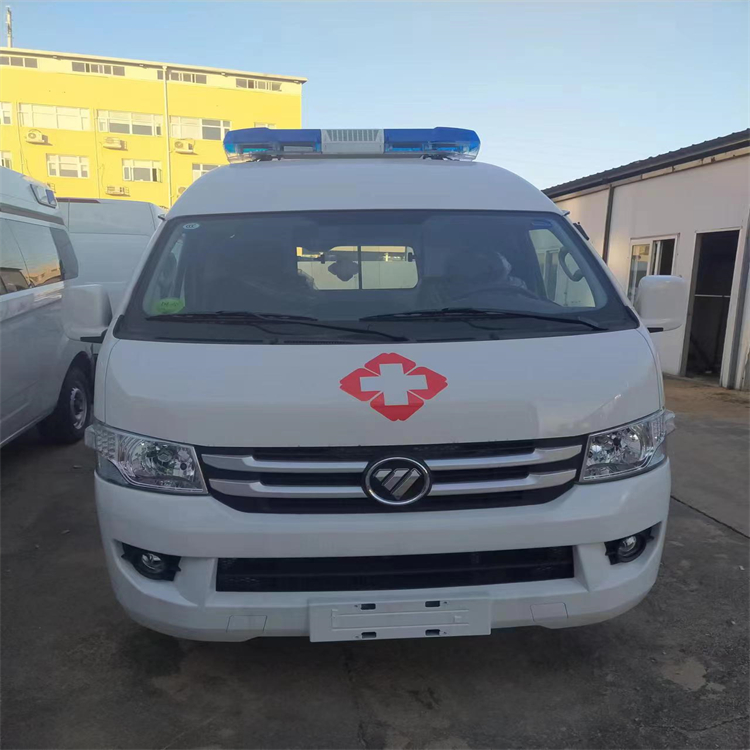

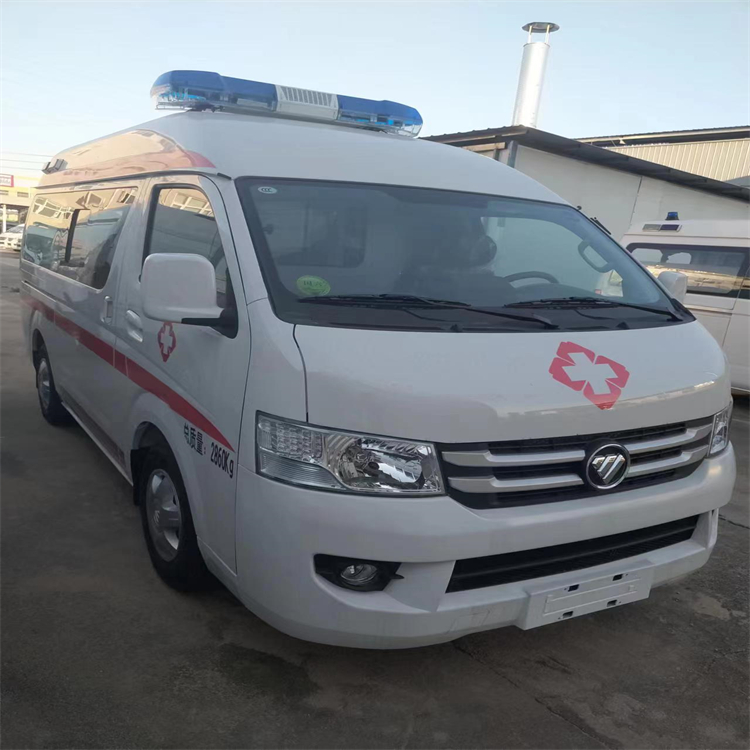

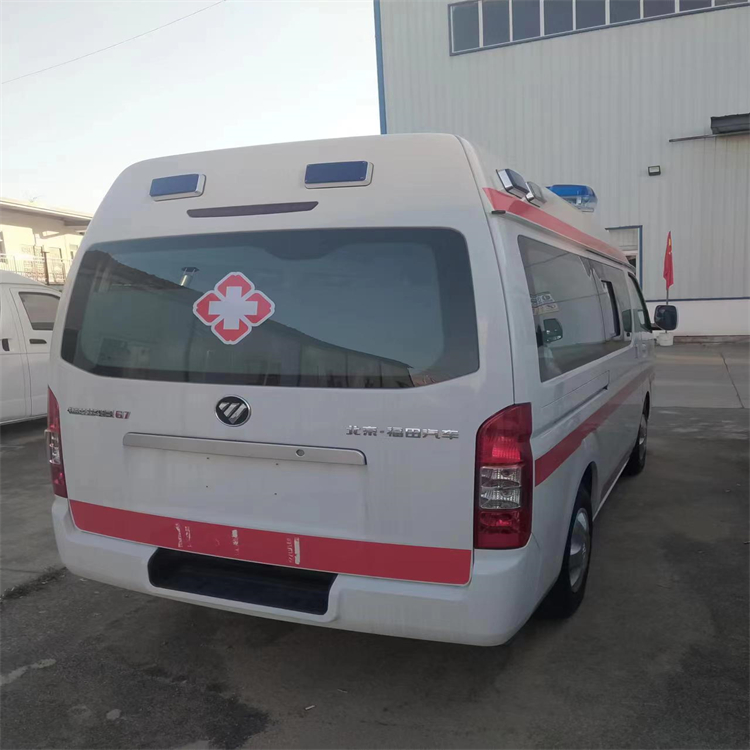

Vehicle Exterior: The whole body is white. The front of the car, both sides of the body, and the tailgate are pasted with red cross emblems. Colorful stripes are pasted around, which are bright and eye-catching, providing an effective warning.

Medical Cabin Glass Film: Frosted glass paper is pasted on the second and third windows, effectively protecting the privacy of patients.

Warning Lights: An I-shaped warning light is installed on the front top, which is beautiful and generous in appearance.

Horn Power: 100W.

Blue flashing lights are installed on both sides and the tail, providing an effective warning.



  1. Medical Cabin Ambulance Facilities

Ambulance System Automatic Loading Stretcher: The stretcher is made of high-strength aluminum alloy, with a PVC waterproof sponge mattress, and the backrest is adjustable. The thickened oval leg tubes, the auxiliary loading wheels evenly distributed around, and the aluminum blocks greatly increase the load-bearing capacity of the frame. It only requires one person to easily complete the loading process.

Stretcher Platform: Made of high-quality aluminum alloy materials to assist the stretcher in getting on and off the vehicle.

Infusion Stand: One set of aluminum alloy rail-mounted infusion stand is installed on the top of the medical cabin, including 2 folding hooks.

Medical Oxygen Control System: Two 10L steel oxygen cylinders with a nominal pressure of 15MPA (light in weight, easy to load, unload and replace). At the same time, it is equipped with two single-gauge pressure reducers, two German-style oxygen terminals, one ventilator interface, and one wall-mounted oxygen inhaler. The oxygen output can be controlled when the patient is inhaling oxygen, and a humidifier bottle is provided to supply moist oxygen to the patient, which is more conducive to the patient’s oxygen inhalation.



  1. Medical Electrical System

Lighting Lamps: 4 12V interior cabin lighting lamps with stable light sources and a large illumination area, and 2 infusion spotlights.

Inverter: A vehicle-mounted sine wave inverter with a power of 1000W, featuring stable frequency, stable voltage, and stable output power, providing power supply for the equipment on the vehicle; 2 sets of 220V and 12V multi-functional sockets (can connect to two or three-pin sockets, for both AC and DC use).

Disinfection Lamp: One intelligent timed ultraviolet disinfection lamp ensures the hygiene and safety of the cabin.



  1. Air Circulation System

Air Conditioning and Heating: One set of rear air conditioning and rear heating devices, with independent control of cooling and heating, which can reasonably adjust the temperature in the cabin as needed.

Exhaust Fan: One set of DC12V multifunctional exhaust fan with air intake and exhaust functions is installed on the roof, effectively ensuring the efficient air circulation in the medical cabin.



VII. Medical Cabin Cabinet Interior Configuration

Middle Partition Assembly: A set of middle partition made of new environmentally friendly materials is installed between the cab and the medical cabin. A glass observation window is set on the middle partition for easy observation and communication between the front and rear cabins.

Cabinet Assembly: A set of long equipment cabinets made of new environmentally friendly materials is installed. The cabinet body is equipped with storage spaces such as drawers and open cabinets.

Installation: One set of oxygen cylinder cabinet made of new environmentally friendly materials, which can accommodate 2 10L oxygen cylinders; One set of overhead cabinet made of new environmentally friendly materials is installed. The overhead cabinet adopts a sliding door structure, which is convenient to open the cabinet door.

Installation: One set of long bench cabinets, including cushions, backrests, and two-point seat belts.

Medical Cabin Interior: Made of new lightweight materials, which are waterproof, mildew-proof, antibacterial, and easy to clean.

Medical Cabin Floor: Made of medical floor leather materials, which are anti-slip, waterproof, mildew-proof, antibacterial, and easy to clean.



VIII. Auxiliary Equipment

Side Sliding Door Sliding Window: Flat-mounted sliding glass window.

Intercom: One hands-free microphone is installed in both the cab and the medical cabin, facilitating communication between the personnel in the front and rear cabins.

Fire Extinguisher: One set of 1kg dry powder fire extinguisher is equipped in the medical cabin.

Waste Bin: One covered pedal-type waste bin is equipped in the medical cabin.

Safety Handrail: One long strip handrail is installed on the top of the medical cabin.

Emergency Hammer: One emergency hammer is installed in the medical cabin.

Negative Pressure Purification Device: One set. When the negative pressure device is activated, the relative pressure in the cabin is between -30Pa and -10Pa.
