This towing equipment is a game – changer for rescuing faulty vehicles in underground garages. Its foremost advantage lies in the fact that it eliminates the need for additional counterweights, which simplifies the operation process and reduces preparation time. This not only saves effort but also ensures that the vehicle’s front remains stable during towing, preventing any potential tilting that could cause safety hazards or damage to the towing vehicle.

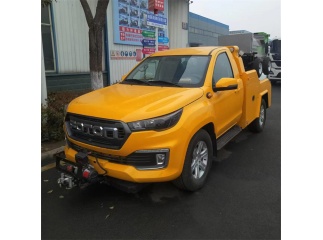

Chassis configuration: Foton Tunland 9 Heavy duty pickup chassis, total mass 3250kg, 3110 mm wheelbase, single row cab, diesel 2.5T engine, 4*4 drive, front double fork arm + rear leaf spring, near and far light integrated lens headlights, with LED daytime running lights, side turn signal (heavy duty regulation requirements), LT265/65R17 tires, Ordinary multi-function steering wheel + backlit buttons (FM + volume), Bluetooth, instrument page turning, 7 “color screen instrument, BOS brake priority, Automatic Emergency Braking (AEB), 4G-T-BOX, collision unlock, one-button start, ESP.

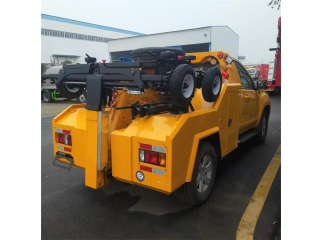

Upper configuration: the maximum effective length of the bracket is 1550mm, the L-arm can be installed automatically, and the maximum lifting mass of the bracket is 1000kg; Maximum pull of winch 2268kg The winch is equipped with a quick release device, which can realize the quick release of the hook under no load; The chassis girder is modified and strengthened, and the front end of the cab is equipped with a bumper and movable counterweight. With universal auxiliary wheel, hydraulic three-section telescopic tow arm, electric hydraulic unit wireless operating system.
| Truck name | Foton 4×4 drive pickup wrecker |
| Maximum power | 120kw（163hp） |
| Fuel Type | diesel |
| Tire specification | 265/65R17LT |
| Displacement (ML) | 2499 |
| Max towing capacity of winch | 2268kg |
| the maximum lifting mass of the bracket | 1000kg |
| Length of steel wire rope | 21m |
| Standard equipment |
the maximum effective length of the bracket is 1550mm, the L-arm can be installed automatically, and the maximum lifting mass of the bracket is 1000kg; Maximum pull of winch 2268kg The winch is equipped with a quick release device, which can realize the quick release of the hook under no load; The chassis girder is modified and strengthened, and the front end of the cab is equipped with a bumper and movable counterweight. With universal auxiliary wheel, hydraulic three-section telescopic tow arm, electric hydraulic unit wireless operating system. |
| Remark | Logo and color can be customized. |
