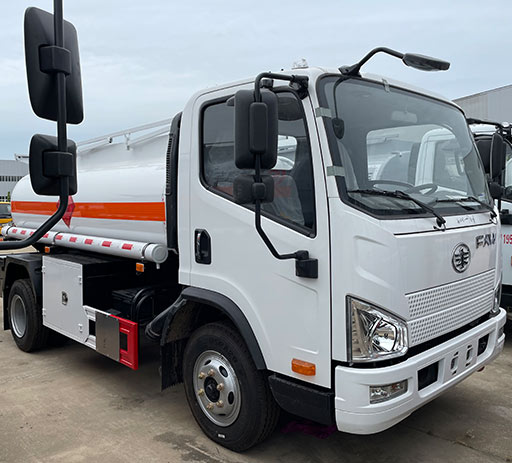

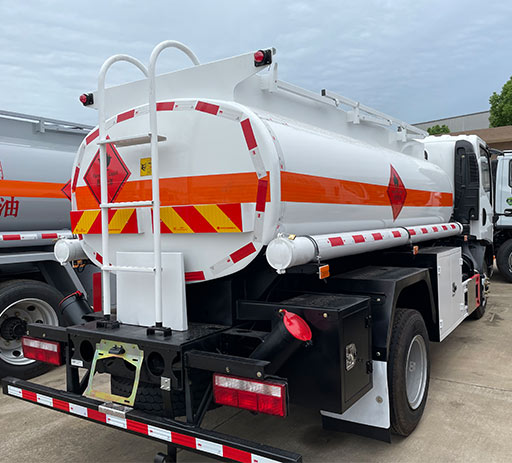

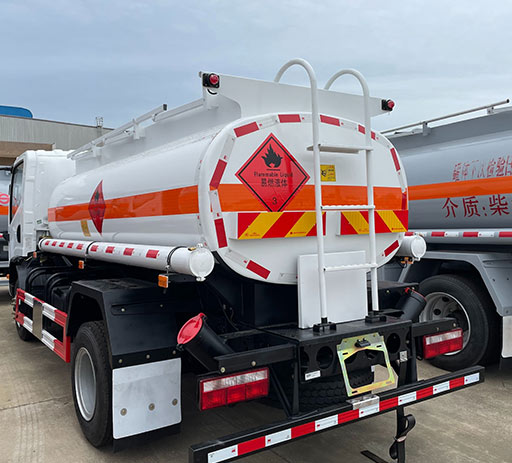

FAW chassis, 5000L capacity, euro2 diesel engine, 120HP, carbon steel /stainless steel/aluminium alloy material, fuel dispenser is optional,high pressure oil pump, input and output valve, mainly used for the transportation and storage of oil derivatives (gasoline, diesel oil, crude oil, lubricating oil and coal tar oil products)
Tanker is mainly used for the transportation and storage of oil derivatives (gasoline, diesel oil, crude oil, lubricating oil and coal tar oil products) according to different uses and use environment has a variety of refueling or oil transport function, with oil suction, oil pumping, a variety of oil loading, distribution and other functions.
| Truck name | FAW 5 m³oil tank truck |
| Chassis parameters | |
| Chassis brand | FAW |
| Emission standard | Euro 2/5/6 |
| Driving type | 4*2 |
| Steering type | Left /right hand |
| Cab model | One row |
| Tire specification | 7.00R16 |
| Tire number | 6 wheels+1 spare tire |
| Wheel base | 3260 mm |
| Engine | dachai |
| Horsepower | 120hp |
| Front axle | D135 |
| Rear axle | 1058 |
| Transmission gearbox | 5 gears |
| Brake | Oil brake |
| Suspension | Leaf spring |
| Air condition | Heat and cold air conditioning |
| Super structure parameters | |
| Container volume | 5 m³ |
| Container material | carbon steel/stainless steel/aluminium alloy |
| Transport material | Diesel /gasoline or other oil |
| Tank thickness | 4mm |
| Tank dimension | 3800×1700×1150mm |
| Access ladder | yes |
| Fuel dispenser | optional |
