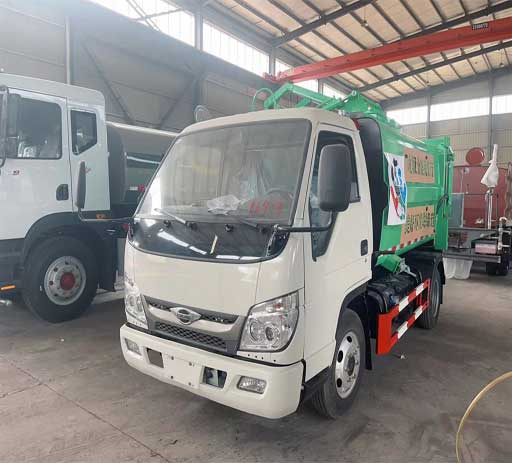

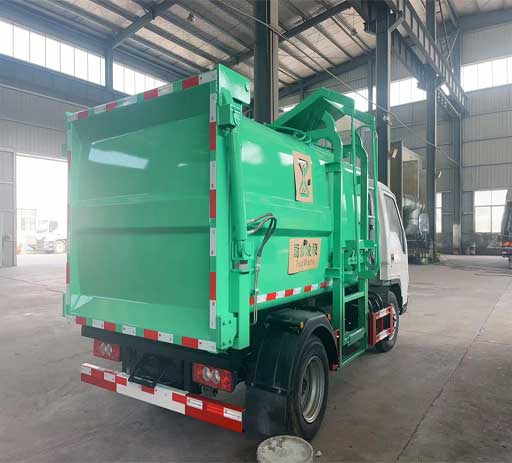

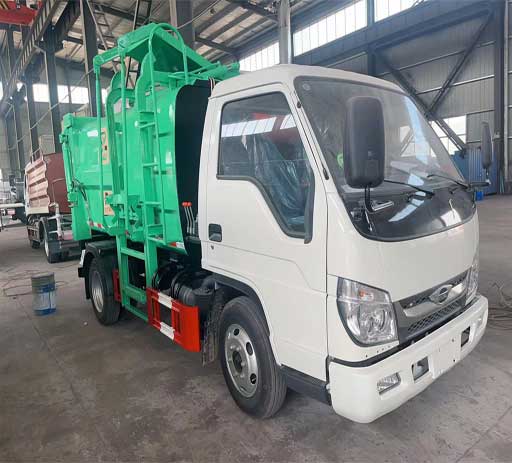

Foton chassis, diesel engine,115hp,3tongarbage tank capacity,hydraulic side mounted lifting unit , used for city household garbage collection and transportation
| Truck name | FOTON 5cbm side mounted trash vehicles |
| Chassis parameters | |
| Emission standard | Euro 2/5/6 |
| Driving type | 4*2 left hand steering |
| Tire specification | 7.50R16 6+1 |
| Wheel base | 3300mm |
| Engine | quanchai |
| Horsepower | 115hp |
| Rear axle capacity | 5ton |
| Transmission gearbox | 6 gears |
| Air condition | Heat and cold air conditioning |
| Super structure parameters | |
| Container volume | 5 m³ |
| Container material | High strength carbon steel |
| Operation assy | Two sides simultaneous operation |
| lifting unit | side mounted hydraulic support |
| Trash bin model | 120L/240L |
| Compaction ratio | 0.8 |
