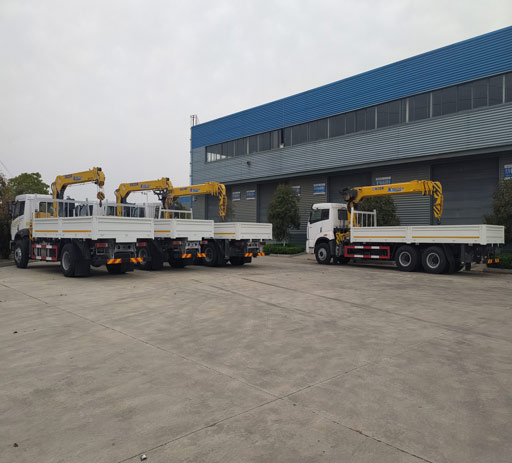

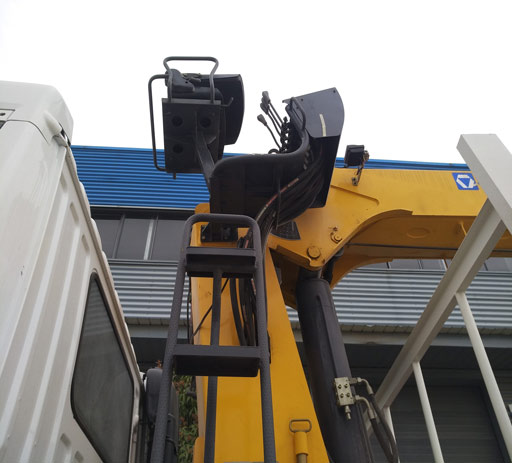

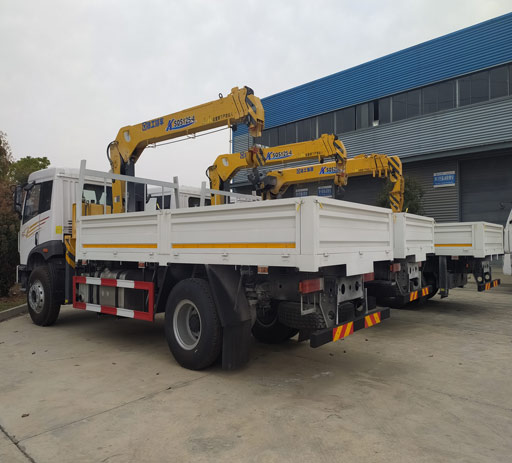

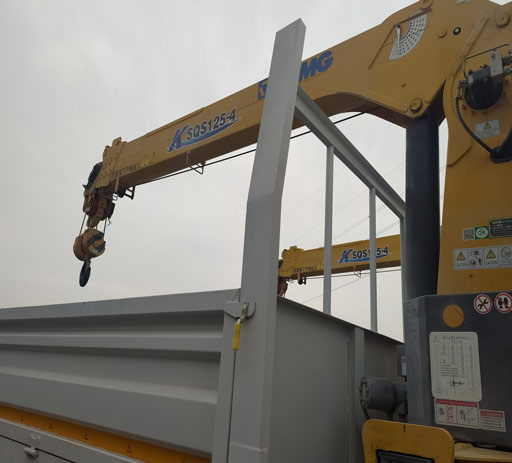

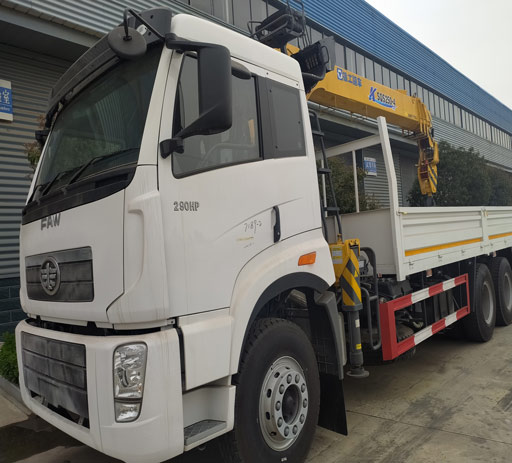

hydraulic straight boom, xcmg 10ton lifing capacity, FAW chassis, euro3 emission standard, cargo box made from high strong carbon steel,hydraulic stablizer,two sides operation ,top seat,etc.
hydraulic xcmg straight boom, 10ton lifting capacity,with FAW chassis, diesel engine, cargo box,hydraulic outrigger/stabilizer,two sides operation system,top seat,etc
| Truck name | truck mounted crane |
| Chassis brand | FAW |
| Emission standard | Euro3 |
| Steering type | Left/right hand drive |
| Wheel base | 4350+1350mm |
| Horsepower | 290HP |
| Tire | 11.00R20 |
| Tire number | 10+1 |
| Front axle capacity | 9ton |
| Rear axle capacity | 16ton |
| Transmission | Manual |
| Gear box | FAST 10 gears |
| Fuel type | Diesel |
| Air condition | Cold and heat air conditioning |
| Super structure parameters | |
| Crane lifting type | Hydraulic |
| Crane capacity | 10ton |
| Boom model | 4-section |
| Lifting height | 16m |
| Working radius | 14m |
| container size | 8500*2300*550mm(customized ) |
| container material | High strength carbon steel |
| Container thickness | 4mm Side,6mm bottom |
