Dongfeng KL 8×4 Flatbed Transport Vehicle – Ideal for 30 – 40 Ton Construction Machinery Hauling

The flatbed transport vehicle, also known as a construction machinery transport vehicle, flatbed truck, low flatbed transport vehicle, excavator transport vehicle, flatbed trailer, bulldozer transport vehicle, excavator carrier, excavator flatbed truck, excavator flatbed trailer, excavator trailer, excavator flatbed, backhoe loader flatbed truck, backhoe loader flatbed trailer, etc., is mainly used for transporting non-detachable objects such as excavators, loaders, and harvesters. The flatbed transport vehicle is a common large-duty truck in daily life. It is generally widely used in large-scale production sites like factories and construction sites. The strong load-bearing capacity of the flatbed transport vehicle has played a crucial role in the process of economic development.

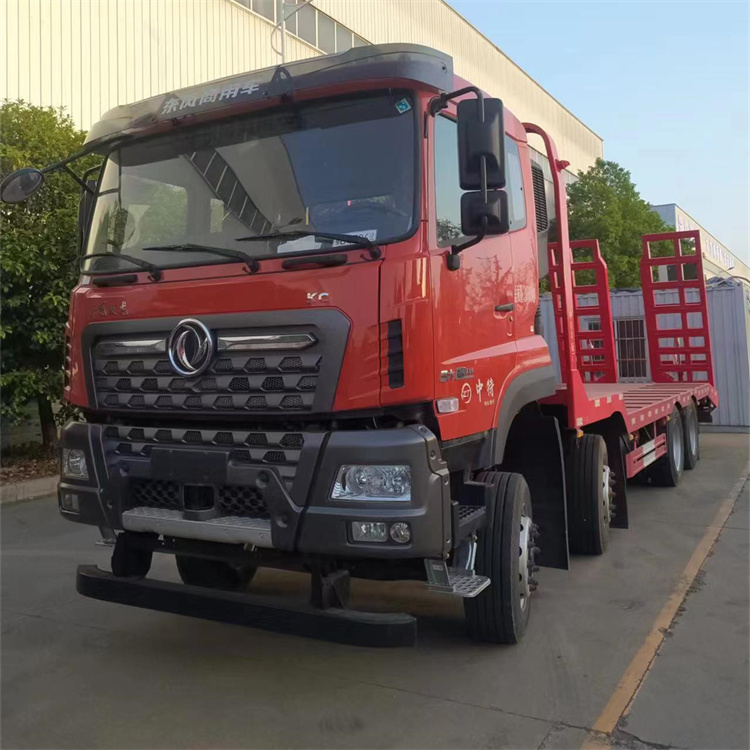

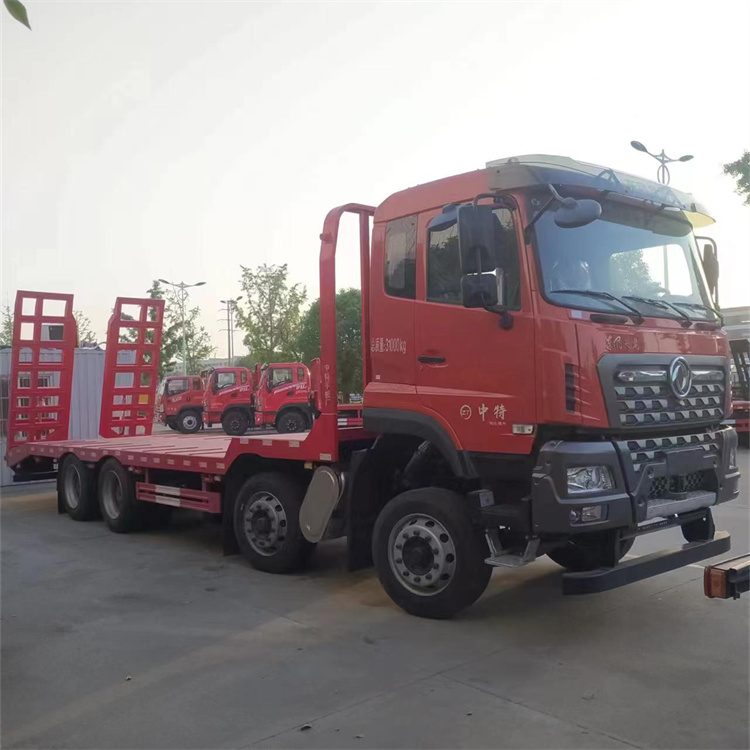

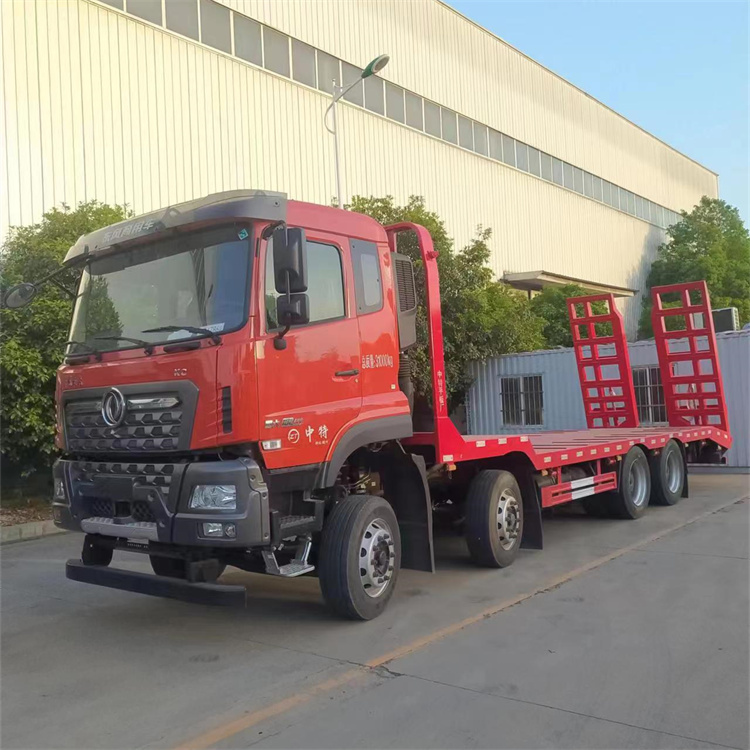

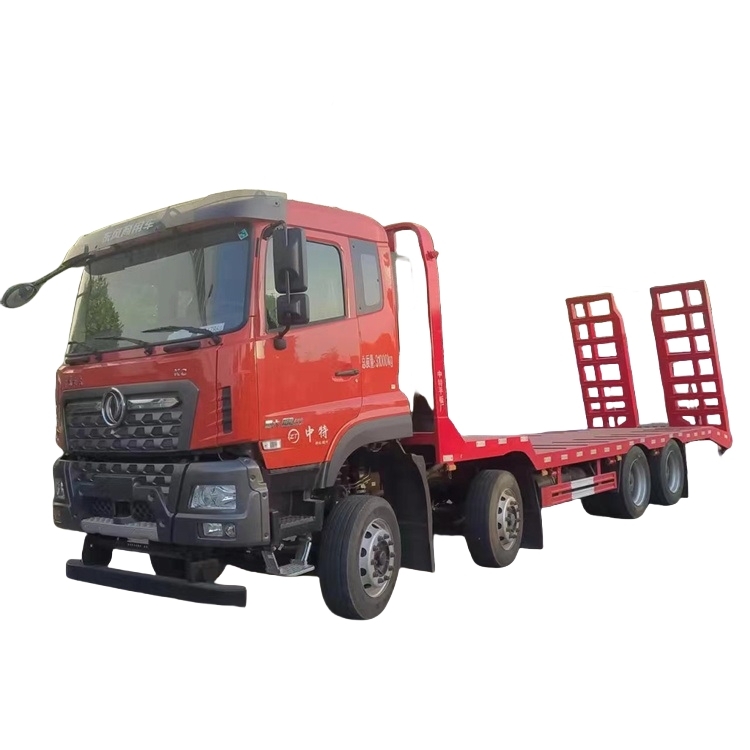

This Dongfeng 8*4 flatbed trailer is suitable for hauling excavators weighing less than 36 tons. This trailer features a KL luxurious cab, equipped with a Yuchai engine with a power of 340 horsepower and a Fast 12-speed gearbox. It is also equipped with a 13-ton rear axle and 11.00R20 steel wire tires, and the wheelbase is 1850 + 4350 + 1350mm.



Upper Configuration of the Dongfeng 8*4 Excavator Flatbed Truck/8*4 Excavator Trailer

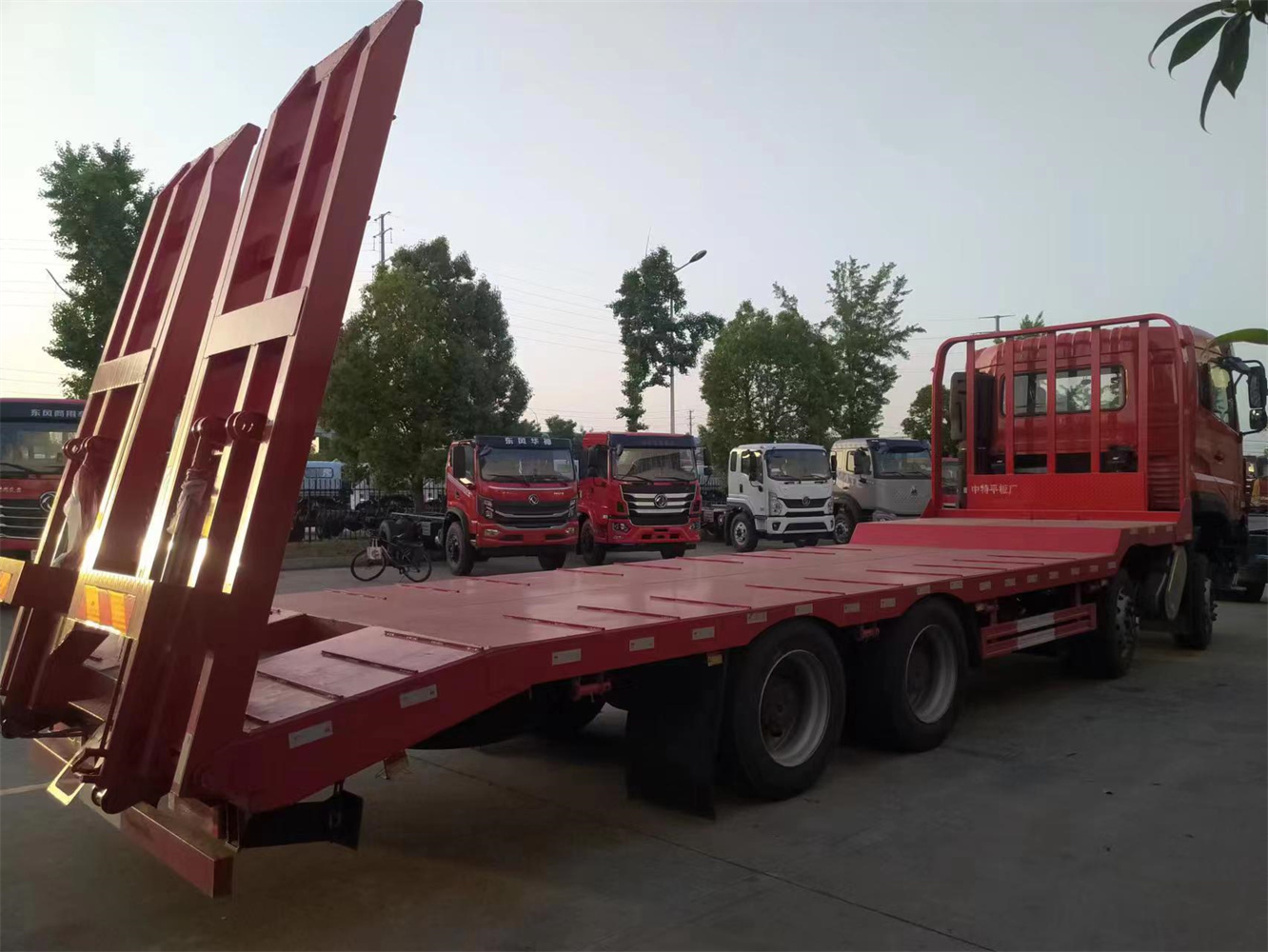

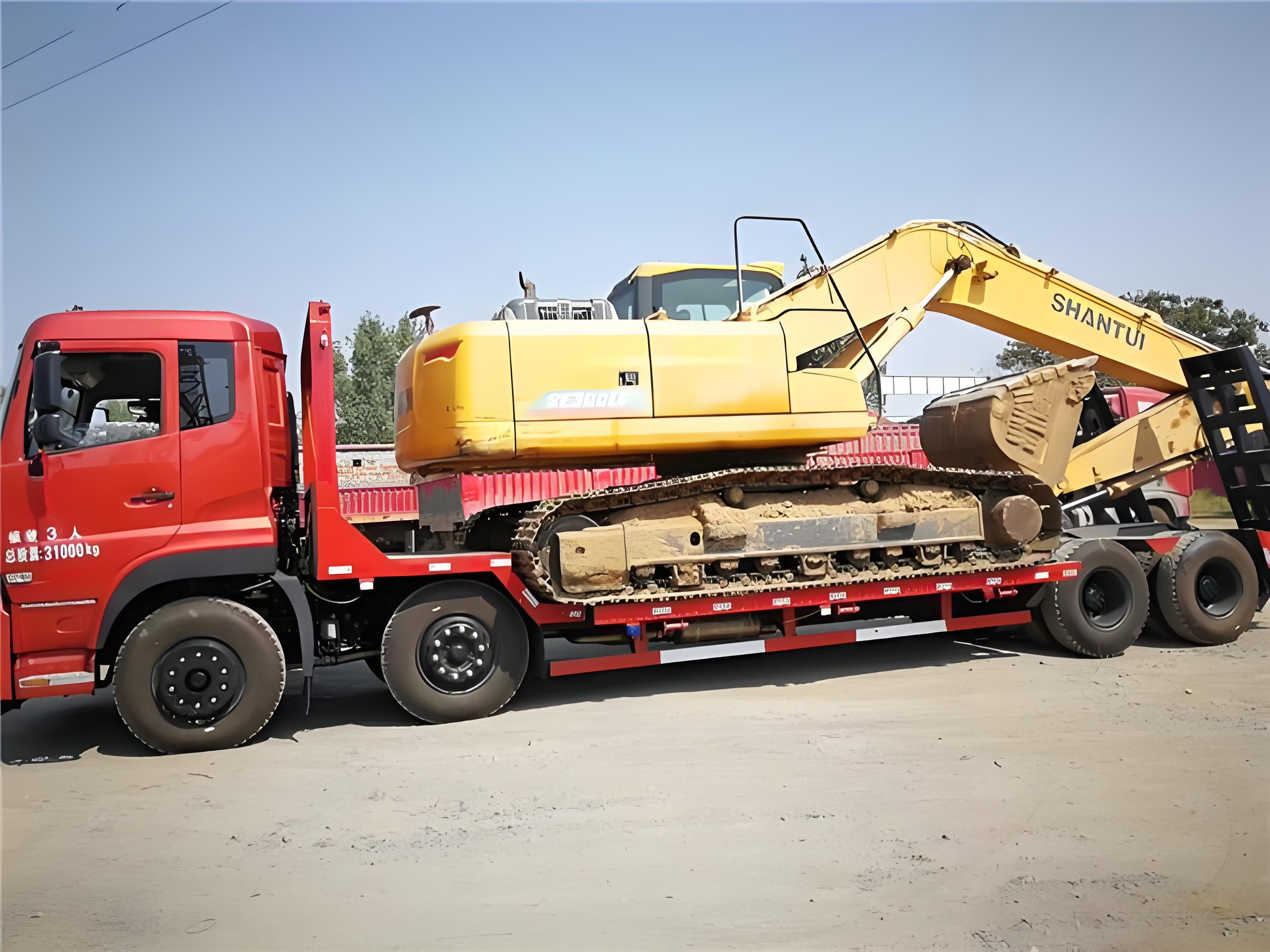

The upper configuration can be selected as either the standard type or the heavy-duty type. For the standard type, the upper crossbeam adopts 12×12 mm specification square steel with a thickness of 6mm, and it is designed as a whole-through type, which has strong load-bearing performance. The cargo box flatbed is made of 8mm thick checkered steel plate. For the heavy-duty type, the upper crossbeam uses 14×14 mmspecification square steel with a thickness of 8mm, also in a whole-through design, offering even better load-bearing performance. The cargo box flatbed is a 10mm thick checkered steel plate. The climbing ladder is designed in a heavy-duty and reinforced manner, with triple ribs and double spring reinforcement treatment. It is equipped with rear outriggers, and the flatbed is equipped with diagonal braces. The cargo box flatbed can be telescopic, extending to 3 meters and retracting to 2.5 meters. The overall dimensions of the vehicle are: 9700, 10300×2550×3200, 3600mm. The length of the cargo box flatbed is 7.2 – 8 meters. It is indeed an excellent trailer for transporting 30-40-ton large excavators and other large construction machinery.
