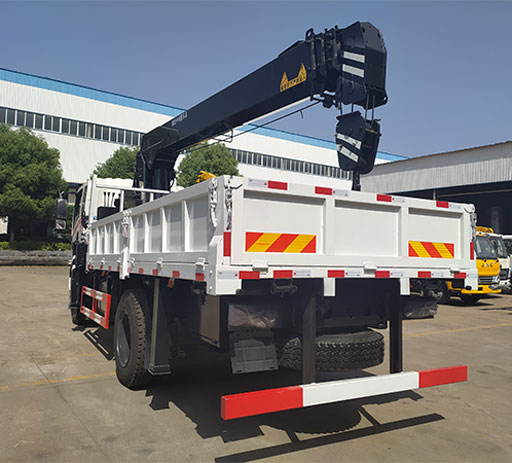

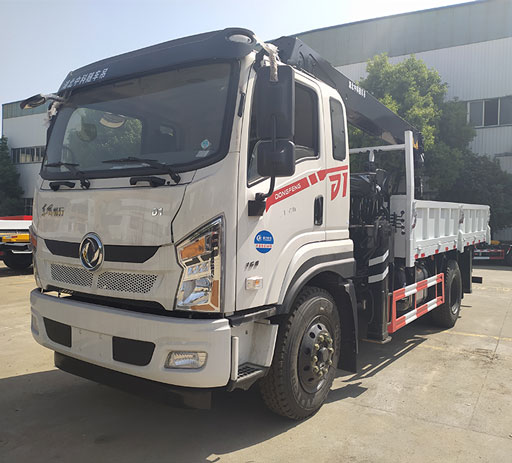

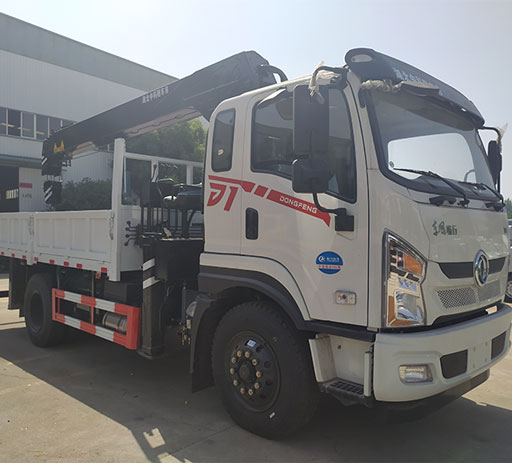

dongfeng chassis, 8ton hydraulic telescopic straight boom , strong diesel engine, self loading cargo box made from carbon steel
Truck crane is a kind of vehicle that can lift goods by hydraulic lifting and expansion system. It is usually assembled on the truck,the boom can mount a lot kinds of grasping auxiliary tools, such as clamping wood grab, hanging basket, clamping brick fixture, drilling tools, etc., mostly used in stations, warehouses, docks, construction sites, field rescue and other places.
| Truck name | truck mounted crane |
| Chassis brand | dongfeng |
| Emission standard | Euro3/euro5/euro6 |
| Steering type | Left or right hand drive |
| Wheel base | 4500mm |
| Engine | Cummins B190 33 |
| Horsepower | 190hp |
| Tire | 10.00R20 18PR 6+1 |
| Front axle capacity | 4.5ton |
| Rear axle capacity | 10ton |
| Transmission | Manual |
| Gear box | 8-gears |
| Fuel type | Diesel |
| Air condition | Cold and heat air conditioning |
| Super structure parameters | |
| Crane lifting type | Hydraulic telescopic strait boom |
| Crane capacity | 8ton |
| Boom model | 4-section |
| Lifting height | 15.5m |
| Working radius | 13.5m |
| container size | 5100*2300*550mm(customized ) |
| container material | High strength carbon steel |
| Container thickness | 4mm Side,6m bottom |
