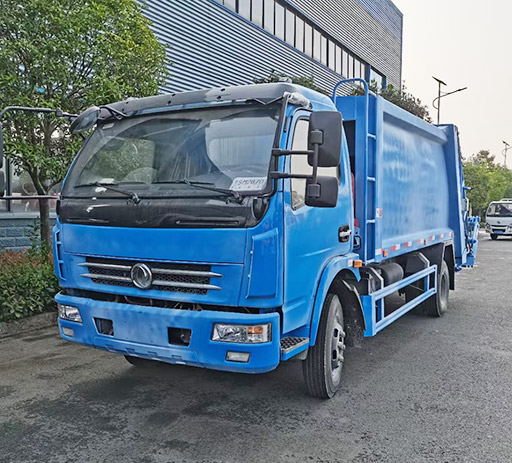

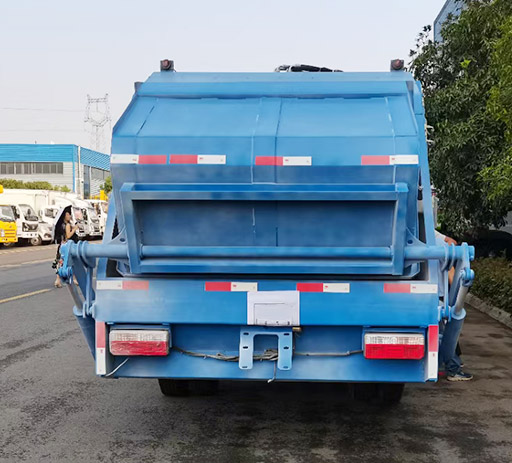

dongfeng 4*2 chassis, euro2/5/6 emission standard, left hand or right hand steering,10cbm container volume, rear loader turn over unit, 0.8 compression rate
The compressed garbage truck produced by our company has the advantages of simple appearance, nice-design , excellent performance and advanced control system. It is the most popular garbage compression transport product. Jacket part by seal compression enclosure, filling machine, shovel, hydraulic transmission system and electrical control system, using hydraulic transmission, electrical control and bi-directional compression technology, through the automatic control system, realizes the garbage dump, strong extrusion, two-way pressure loading, high pressure, good sealing, easy to operate, safe and stable, It is mainly suitable for municipal sanitation, enterprises, factories, construction sites, residential property, institutions, colleges and universities and other local household garbage collection and transport.
| Truck name | Dongfeng 10 m³compactor garbage truck |
| Chassis parameters | |
| Chassis brand | dongfeng |
| Emission standard | Euro 2//5/6 |
| Driving type | 4*2 |
| Tire specification | 7.50R16 |
| Tire number | 6 wheels+1 spare tire |
| Wheel base | 3800 mm |
| Engine | cummins |
| Horsepower | 125hp |
| Front axle capacity | 2.2ton |
| Rear axle capacity | 5ton |
| Transmission gearbox | 1700010-C69031 |
| Oil tank volume | 125L |
| Air condition | Heat and cold air conditioning |
| Super structure parameters | |
| Container volume | 10 m³ |
| Container material | High strength carbon steel |
| Operation assy | Two sides simultaneous operation |
| Remote control | optional |
| Trash bin model | 120L/240L/660L/1100L |
| Compaction ratio | 0.8 |
