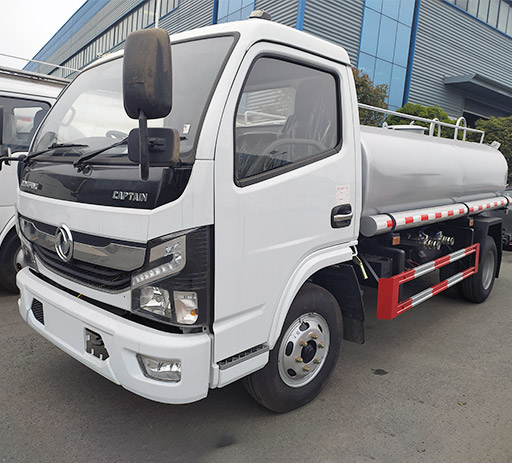

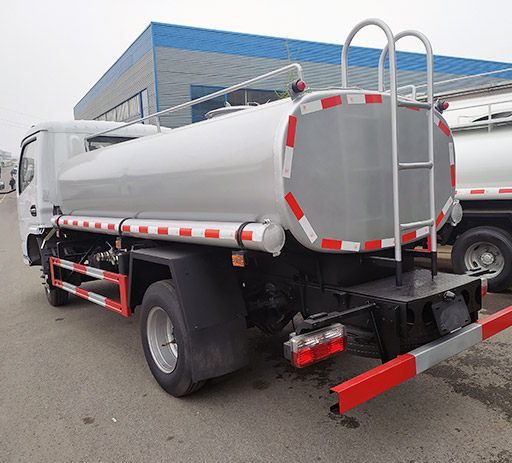

dongfeng chassis,98hp diesel engine, 3300mm wheel base,5ton loading capacity,stainless steel tank material, water pump/stainless steel water pump, rear working platform ,used for drinking water storage and raod cleaning,etc

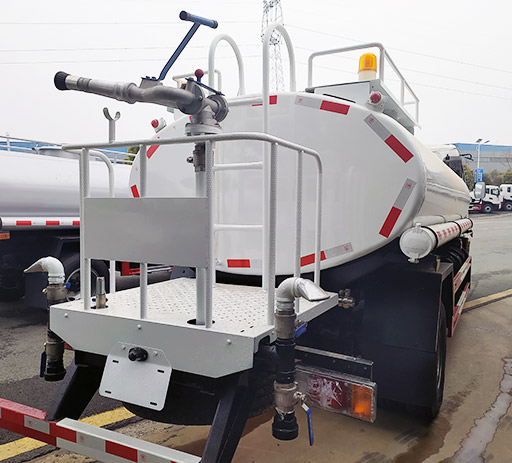

The sprinkler is loaded with a front rush, after sprinkling, side spray, rear type working platform, platform with high pressure water cannon (360° rotation, water mist shape can be adjusted into straight rush shape, heavy rain, moderate rain, light rain, drizzle)
Equipped with high quality high-power special sprinkling pump,famous brand force extractor, sundry filter, GB general 65 fire interface (water can be added through fire hydrant), a set of self-flow ball valve system, self-suction and self-discharge, installation of 2 water diversion steel wire hose.
Suitable for all kinds of road cleaning; city virescence belt watering; construction site,and high - altitude building flushing. It has many functions such as water sprinkling, dust pressing, high (low) level spraying, pesticide spraying, guardrail washing and emergency fire fighting.
| Truck name | dongfeng 5ton water truck with stainless steel tank |
| Chassis parameters | |
| Chassis brand | dongfeng |
| Emission standard | Euro 2/5/6 |
| Driving type | 4*2 |
| Steering type | Left /right hand |
| Cab model | One row with bed |
| Tire specification | 7.00R20 |
| Tire number | 6wheels+1 spare tire |
| Wheel base | 3300mm |
| Engine | chaochai |
| Horsepower | 98hp |
| Front axle capacity | 2ton |
| Rear axle capacity | 4ton |
| Transmission gearbox | 5 gears |
| Suspension | Leaf spring |
| Air condition | Heat and cold air conditioning |
| Super structure parameters | |
| Container volume | 5 m³ |
| Container material | stainless steel |
| water Spraying height | 35m |
| Sprinkling width | 28m |
| the depth of water uptake | 7m |
| working speed | 22km/h |
