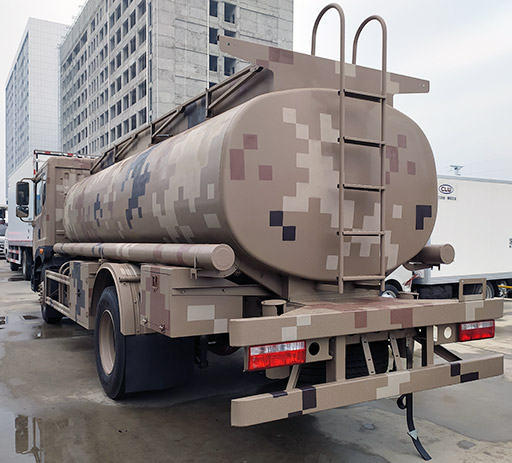

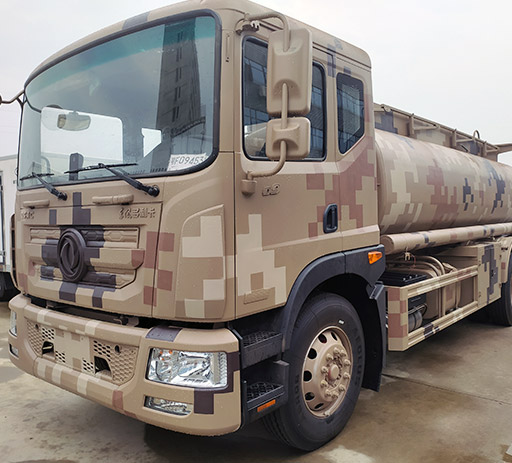

dongfeng chassis, euro2 cummins diesel engine, Q235 carbon steel /stainless steel material, fuel dispenser is optional,high pressure oil pump, input and output valve, mainly used for the transportation and storage of oil derivatives (gasoline, diesel oil, crude oil, lubricating oil and coal tar oil products)
Tanker is mainly used for the transportation and storage of oil derivatives (gasoline, diesel oil, crude oil, lubricating oil and coal tar oil products) according to different uses and use environment has a variety of refueling or oil transport function, with oil suction, oil pumping, a variety of oil loading, distribution and other functions.
| Truck name | Dongfeng 15000L oil tank truck |
| Chassis parameters | |
| Chassis brand | dongfeng |
| Emission standard | Euro 2/3/4/5/6 |
| Driving type | 4*2 |
| Steering type | Left /right hand |
| Cab model | One row |
| Tire specification | 9.00R20 16PR |
| Tire number | 6 wheels+1 spare tire |
| Wheel base | 3950 mm |
| Engine | cummins |
| Horsepower | 170hp |
| Front axle capacity | 3.9ton |
| Rear axle capacity | 8ton |
| Transmission gearbox | 8 gears |
| Oil tank volume | 150L |
| Suspension | Leaf spring |
| Air condition | Heat and cold air conditioning |
| Super structure parameters | |
| Container volume | 15 m³ |
| Container material | High strength carbon steel |
| Transport material | Diesel /gasoline |
| Tank thickness | 4mm |
| Tank dimension | 5800×2200×1430mm |
| Access ladder | yes |
| Fuel dispenser | optional |
