FAW chassis, euro2/5 emission ,yuchai engine, 5cbm mixer tank capacity, high strength alloy steel tank material, 6mm thickness,international brand hydraulic components , used for cement mixing and transportation in construction site

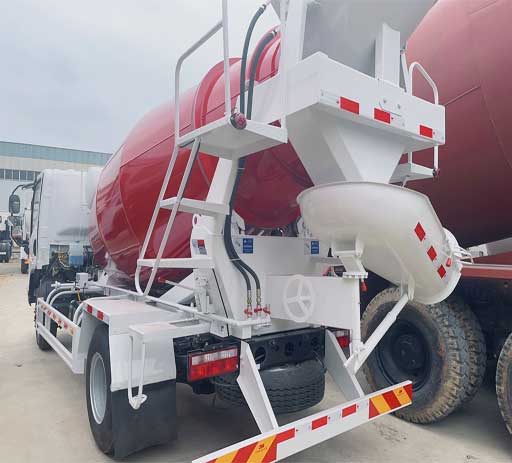

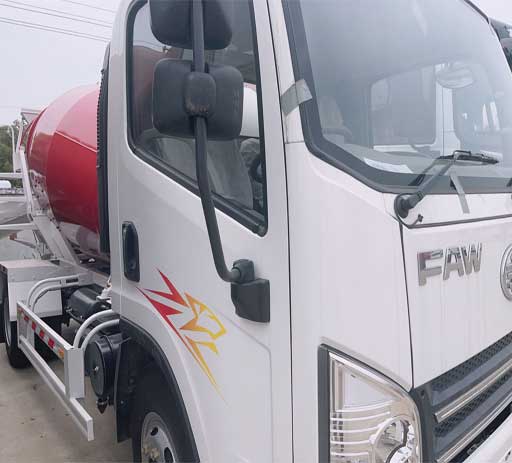

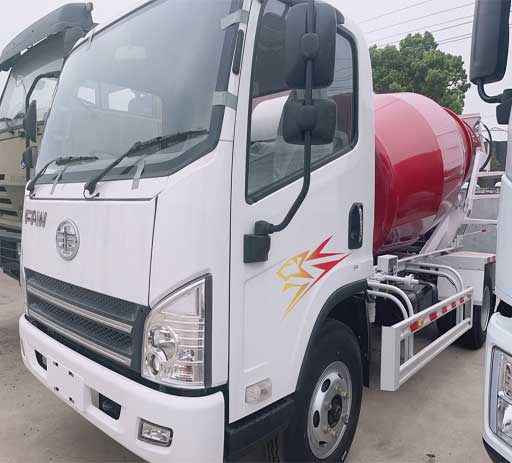

China new FAW 5cbm concrete mixer tank truck
Container volume10m³Mixer tilt angle
| Truck name | FAW 5m³ cement mixer tank truck |
| Chassis parameters | |
| Chassis brand | FAW |
| Emission standard | Euro 2/5 |
| Driving type | 4*2 |
| Steering type | Left /right hand |
| Tire specification | 8.25R20 |
| Tire number | 6 wheels+1 spare tire |
| Wheel base | 3800 mm |
| Engine | YUCHAI |
| gearbox | manual |
| Oil tank volume | 150L |
| Suspension | Leaf spring |
| Air condition | Heat and cold air conditioning |
| Container material | High strength alloy steel |
| material thickness | 6mm |

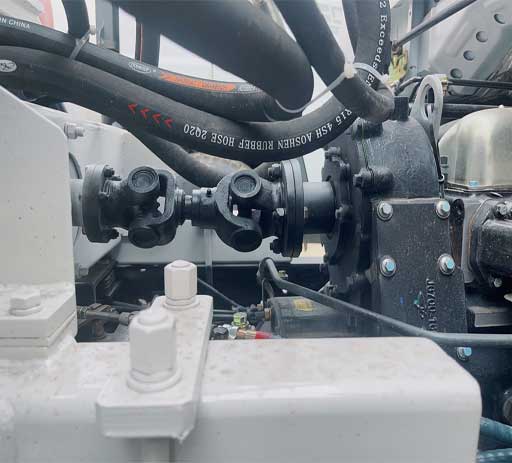

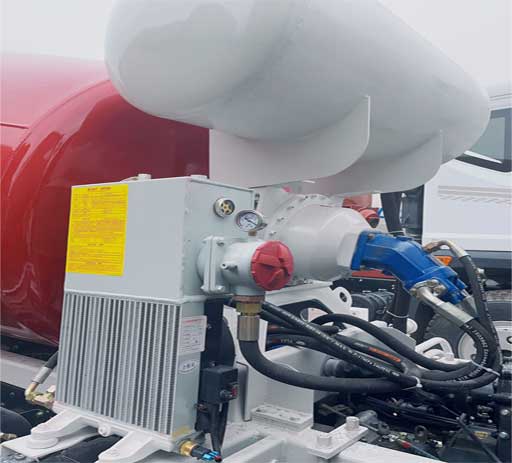

| Hydraulic assy | international famous brand |
| Remote control | optional |
| discharging speed | 3m3/min |
| rotational speed | 3r/min |
| Mixer tilt angle | 15.3° |
| temperature range | 18℃ |
